SKU
2759
Manufactures SKU
TRUCK-LITE 2759

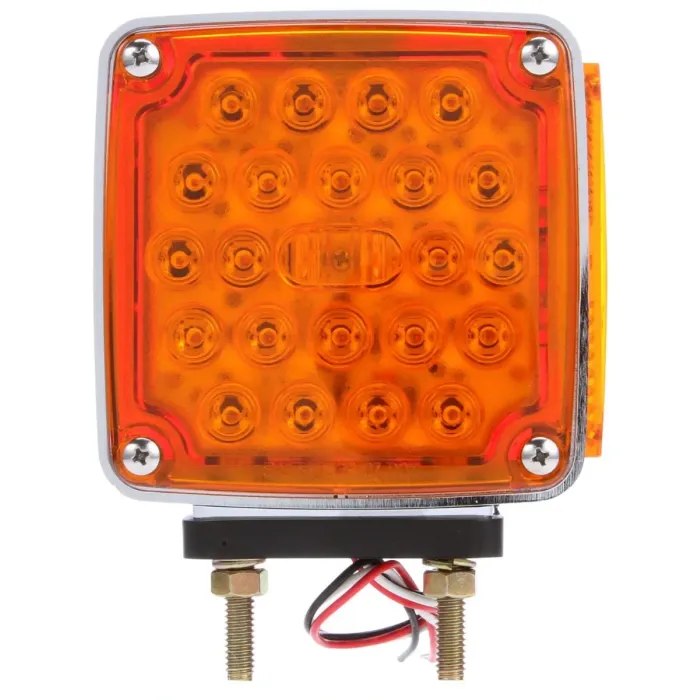

Signal-Stat - LED - Red/Yellow Square - 24 Diode - LH - Dual Face - Vertical Mount - Side Marker - 3 Wire - Pedestal Light - 2 Stud - Chrome - Stripped End/Ring Terminal
$62.78
EA
Signal-Stat - Dual Face - LH - Vertical Mount - LED - Red/Yellow Square - 24 Diode - Chrome - 3 Wire - Pedestal Light
Features & Benefits
Ideal for show trucks - highway mowing - municipal and farm equipment - Unique LED array displays full pattern output - Side marker reflex reflector - LEDs have no filament - therefore are extremely resistant to shock and vibration - LEDs have less current draw - resulting in increased battery and alternator life while allowing more power for other vehicle requirements - Epoxy-encapsulated electronics protect the lamp from damage caused by chemicals and moisture - Double-stud mount
Brand
Signal-Stat
Common Size
4.5 x 4.5
Current Major Amp
0.38
Current Minor Amp
0.04
Housing Color
Chrome
Housing Material
Zinc
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Yellow
Lens Height
4.7
Lens Material
Polycarbonate
Lens Shape
Square
Lens Width
4.7
Lighting Technology
LED
Mount Type
2 Stud Mount
Mounting Connector Diameter
0.313
Mounting Orientation
Vertical
Number of Diodes/Bulbs
24
Number of Faces
Dual Face
Number of Wires
3
Position
Left Hand Side
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I6
UPC
0735111175575
UNSPSC
25172900
VMRS
034-003-141
Warranty
2-Year
Shipping Weight (lbs)
1.390000
Total Height
5
Total Width
4.7
