SKU
2801
Manufactures SKU
TRUCK-LITE 2801

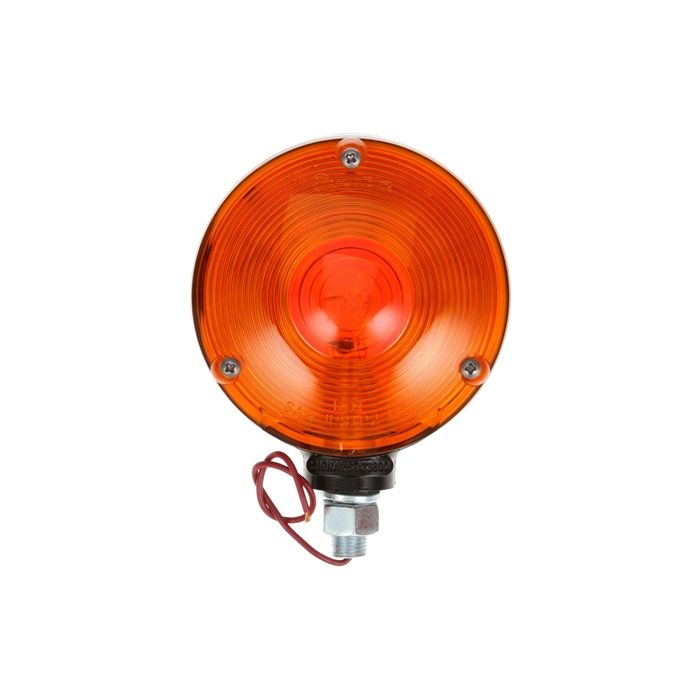

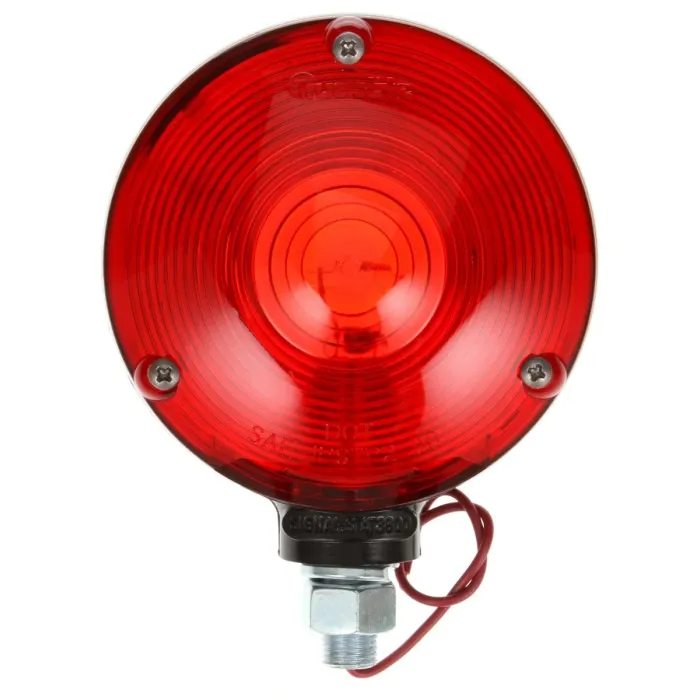

Signal-Stat - Incandescent - Red/Yellow Round - 1 Bulb - Dual Face - 1 Wire - Pedestal Light - 1 Stud - Black - Stripped End
$43.10
EA
Signal-Stat - Dual Face - Incan. - Red/Yellow Round - 1 Bulb - Black - 1 Wire - Pedestal Light
Features & Benefits
3805Y115 requires Phillips #28S 11/4SC or GE # 13655 bulb - For vehicle application with vehicle width under 80" wide - Pigtail with spring and thermoplastic wire exits via hollow stud - LED Upgrade options available #2751 - 2751A and 2750
Brand
Signal-Stat
Common Size
4
Current Major Amp
2.1
Housing Color
Black
Housing Material
Zinc
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Yellow
Lens Height
4.25
Lens Material
Acrylic
Lens Shape
Round
Lens Width
4.25
Lighting Technology
Incandescent
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.5
Mounting Orientation
Universal
Number of Diodes/Bulbs
1
Number of Faces
Dual Face
Number of Wires
1
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
A | I | P2
UPC
0724956085187
UNSPSC
25172900
VMRS
034-002-013
Warranty
1-Year
Shipping Weight (lbs)
1.260000
Total Height
4.25
Total Width
4.62
