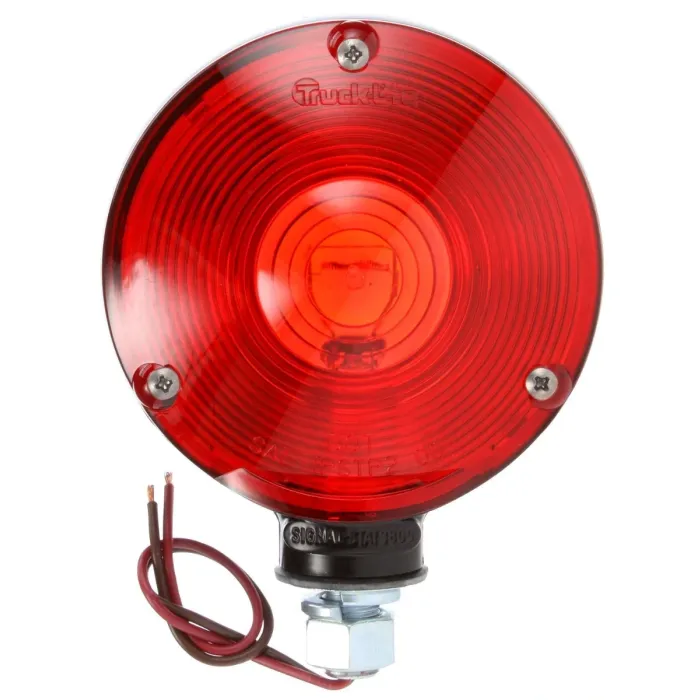

Truck-Lite 2803 – Signal-Stat Red/Yellow Round Dual Face Pedestal Light, 1-Bulb Incandescent, 2-Wire (Universal)

The Truck-Lite 2803 Signal-Stat Pedestal Light is a heavy-duty, 4-inch round signaling solution designed for reliability and classic vehicle aesthetics. This dual-face lamp features a red lens on one side and a yellow (amber) lens on the other, providing clear communication for stop, turn, and tail functions. It is a trusted choice for trucks, tractors, and trailers with a vehicle width under 80 inches.

Built with a rugged black die-cast zinc housing, the 2803 is engineered to survive the toughest road conditions. It features a "Legendary" Cyclostat lens made from high-impact acrylic, which maximizes light dispersion for better visibility. The housing is tightly sealed against dust, dirt, and moisture to ensure long-lasting performance in all weather conditions.

Unlike the single-wire 2801 model, the 2803 features a 2-wire hardwired connection (pigtail with spring and thermoplastic wire) that exits through a hollow mounting stud, providing a secure ground and more reliable electrical connection. This unit is fully bulb-replaceable, making it a cost-effective lighting solution for long-term fleet maintenance.

Key Features:

• Dual-Face Signaling: Features red and yellow lenses for front and rear visibility in one compact unit.

• Durable Zinc Housing: Heavy-duty die-cast zinc with a sleek black finish for superior impact and corrosion resistance.

• Cyclostat Lens Technology: Advanced acrylic lens design for optimum light output and visibility.

• Bulb Replaceable: Uses standard incandescent bulbs (requires Phillips #28S 11/4SC or GE #13655).

• Universal Mounting: Single-stud mount allows for installation on either the left or right side of the vehicle.

• Secure 2-Wire Connection: Includes an 18-gauge pigtail that exits through the mounting stud for a clean and protected installation.

• Compliance: Meets DOT, SAE, and FMVSS 108 standards (I, P, S, T) for safety and legal operation.
