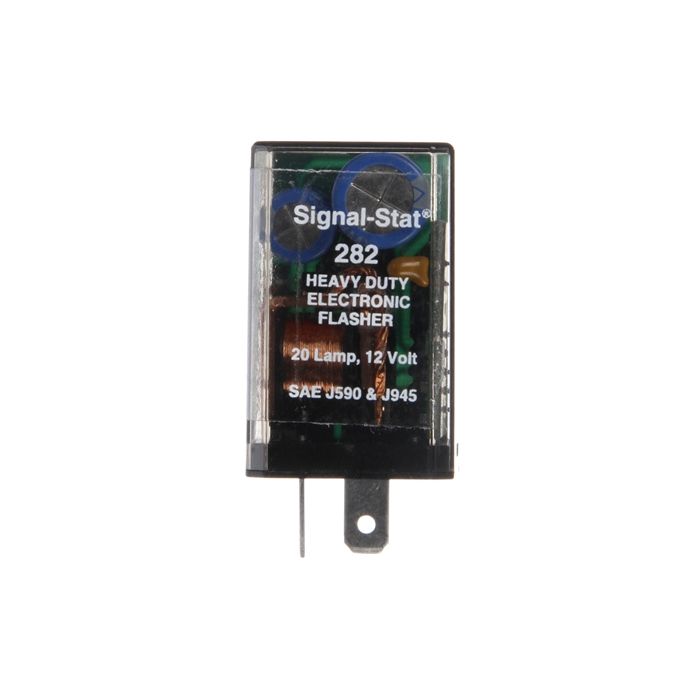

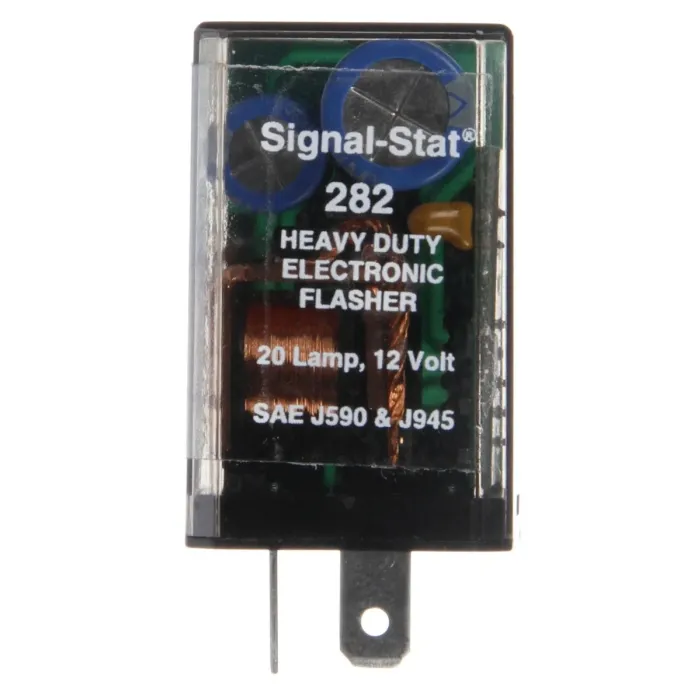

Truck-Lite 282 Signal-Stat Electro-Mechanical 20-Light Flasher Module – 12V, 2-Blade Terminal

Heavy-Duty Signaling Performance for High-Capacity Loads
The Truck-Lite 282 Signal-Stat Flasher Module is a high-capacity, electro-mechanical solution designed for 12V vehicle lighting systems requiring significant power. Built to manage up to 20 lights, this heavy-duty flasher is ideal for large trucks, trailers, and commercial fleets that demand consistent and reliable signaling under heavy electrical loads.

Advanced Engineering & Durability
The 282 model is engineered with an ISO relay and electronic control circuits to ensure superior timing and longevity. Capable of handling a massive 45 Amp maximum current, it is designed for endurance, functioning continuously at 13V for up to 36 hours. With a rapid-start design, the first flash occurs in less than 1.3 seconds, maintaining a consistent flash rate of 70 to 120 FPM (Flashes Per Minute).

Key Features & Benefits:

• Exceptional Capacity: Supports up to 20 lamps (45 Amp max) with 20-32 CP bulbs.

• Rapid Response: Features a quick-start circuit with the first flash in under 1.3 seconds.

• Universal 2-Pin Connection: Standard 1/4" 2-blade male terminals for simple, direct-fit installation.

• Standards Compliant: Meets or exceeds FMVSS 108, DOT, and SAE (J590, J945, J1054) safety standards.

• Robust Construction: Features a durable black plastic housing built to withstand the rigors of the road.

• Versatile Compatibility: Direct replacement for Truck-Lite 97205, 97206, 97207, 97208, and 97209 series modules.

Technical Specifications:

• Voltage: 12V DC

• Connection: 2-Blade Male Terminals

• Current Rating: 45 Amps Max

• Flash Rate: 70–120 FPM

• Material: Heavy-duty Plastic Housing

• Dimensions: 2.20" H x 1.12" W x 1.12" D

• VMRS Code: 034-006-029
