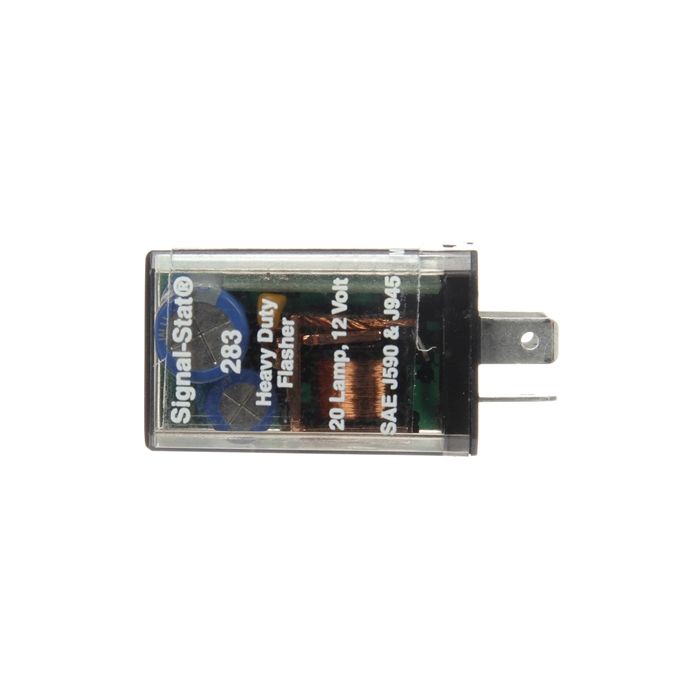

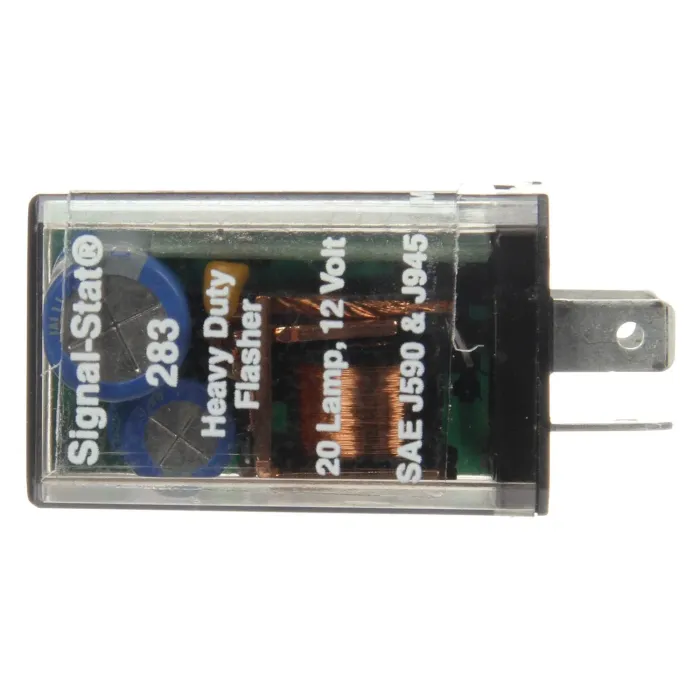

Truck-Lite 283 Signal-Stat 20-Light Electro-Mechanical Flasher Module – 12V, 3-Blade Terminal

Reliable Heavy-Duty Signaling for Commercial Vehicles

Upgrade your vehicle's signaling system with the Truck-Lite 283 Signal-Stat Flasher Module. Engineered for durability and high-capacity performance, this electro-mechanical flasher is designed to manage up to 20 lamps, making it an ideal choice for heavy-duty trucks, trailers, and emergency vehicles.

Precision Engineering & Performance

The Signal-Stat 283 operates at a consistent flash rate of 70 to 120 FPM (Flashes Per Minute), ensuring maximum visibility on the road. With advanced electronic control circuits and a full ISO relay, it delivers a rapid response time, with the first flash occurring less than 1.3 seconds after startup.

Built to Last

Housed in a rugged black plastic casing, this module is built to withstand the rigors of the road. It is rated for 45 Amps and has been tested to function at 13V for 36 continuous hours, providing peace of mind during long-haul operations.

Key Features:

• High Capacity: Supports up to 20 lamps (20-32 candlepower).

• Quick Start: First flash in under 1.3 seconds for immediate signaling.

• Standard Connection: Features a 3-blade terminal design for easy installation and secure fit.

• Compliance: Meets FMVSS 108 and SAE J590, J945, and J1054 standards.

• Audible Feedback: Designed with a clear, audible sound to notify the driver of active signaling.

Specifications:

• Brand: Signal-Stat (by Truck-Lite)

• Part Number: 283 (Cross-ref: GROTE 44720, PETERSON 577)

• Voltage: 12V DC

• Amperage: 45 Amp Max

• Terminal Type: 3-Blade

• Material: Heavy-duty Plastic Housing

• Warranty: 1-Year Manufacturers Warranty
