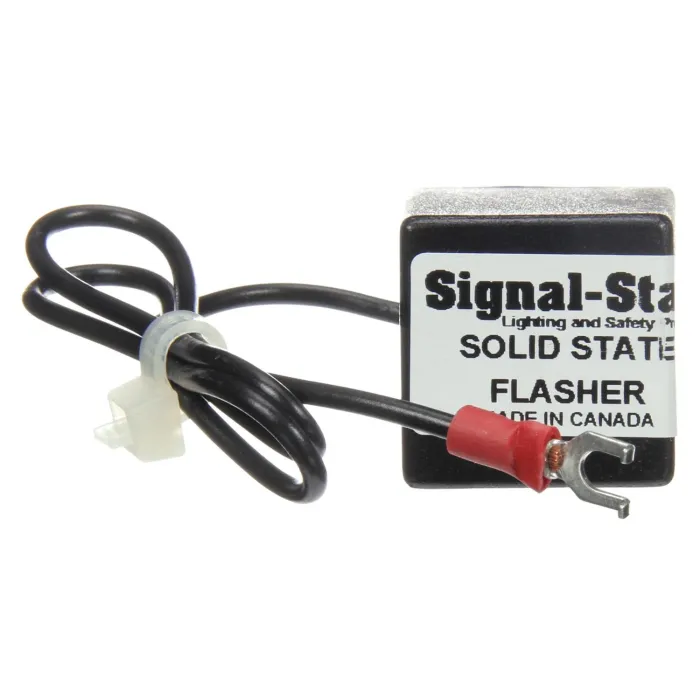

Truck-Lite 285 Signal-Stat 2-Light Solid-State Flasher Module – 12V, 90 FPM, Hardwired

Reliable Heavy-Duty Signaling with Solid-State Precision

Upgrade your vehicle’s lighting system with the Truck-Lite 285 Signal-Stat Flasher Module. Engineered for durability and versatility, this solid-state module is designed to manage up to two incandescent signal lamps alongside LED stop, turn, and tail (S/T/T) lamps. Unlike traditional thermal flashers, the 285 model utilizes advanced timing circuitry to ensure a consistent flash rate of 90 flashes per minute (FPM), regardless of load variations.

Advanced Engineering for Modern Fleets

The Truck-Lite 285 is built to withstand the rigors of the road. Its solid-state design eliminates moving parts, making it significantly more resistant to shock, vibration, and wear than mechanical alternatives. This module operates on a wide range from 1 milliamp to 6 amps, providing the flexibility needed for hybrid lighting setups (incandescent and LED mix).

Key Features & Benefits:

• Dual-Lamp Capacity: Safely operates two incandescent signal lamps with LED S/T/T lamps.

• Solid-State Reliability: Electronic timing circuitry provides a consistent 90 FPM flash rate and extended service life.

• Hardwired Connectivity: Comes hardwired with a ground wire to minimize pin corrosion and ensure a secure electrical connection.

• Easy Installation: Equipped with spade and fork terminals for straightforward retrofitting and maintenance.

• Standards Compliant: Meets or exceeds FMVSS 108 and SAE J590/J945 specifications.

Technical Specifications:

• Brand: Truck-Lite / Signal-Stat

• Part Number: 285 (SS285-S)

• Voltage: 12V DC

• Ampere Capacity: 1mA to 6A

• Housing Material: High-grade Plastic

• Flash Rate: 90 FPM

• Dimensions: 1-1/8" W x 1-5/8" H

• Connection: Hardwired (Spade & Fork Terminals)
