SKU
30201R
Manufactures SKU
TRUCK-LITE 30201R

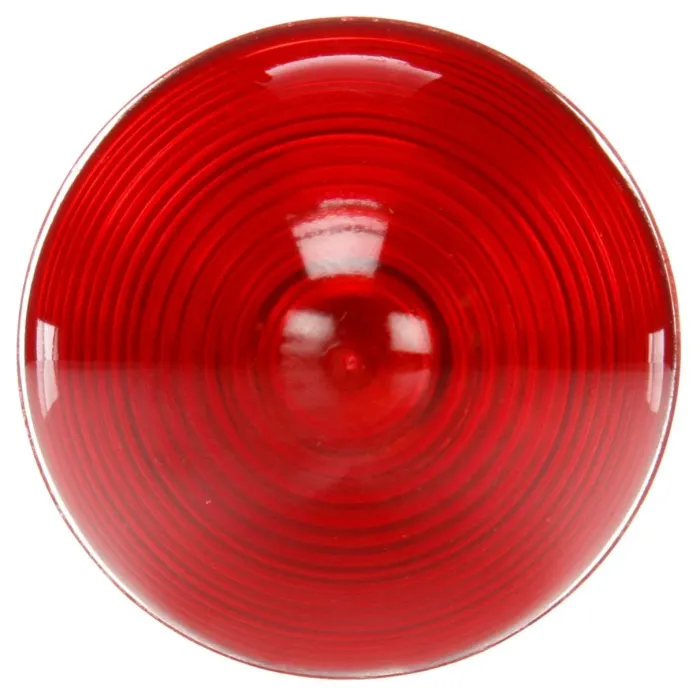

30 Series - Incandescent - Red Beehive - 1 Bulb - Marker Clearance Light - PC - PL-10 - 12V
$4.15
EA
30 Series - Incan. - Red Beehive - 1 Bulb - M/C Light - PC - 12V
Features & Benefits
Features a beehive lens designed for cab marker use - Lens and housing are sonically sealed - High-impact polycarbonate construction - 12V - 15 -000-hour-rated bulb - Suitable for PC requirements on a 45-degree angle - Replaces Signal-Stat 1018 series - Upgrade to LED products - use Truck-Lite #30276R/Y or Signal-Stat 3075/3075A
Brand
TRUCK-LITE
Common Size
2
Current Major Amp
0.33
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-10
Lens Color
Red
Lens Height
2.01
Lens Material
Polycarbonate
Lens Shape
Beehive
Lens Width
2.01
Lighting Technology
Incandescent
Mount Type
Grommet Mount
Number of Diodes/Bulbs
1
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
30 Series
Voltage
12
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111045014
UNSPSC
25172900
VMRS
034-004-024
Warranty
1-Year
Shipping Weight (lbs)
0.090000
Total Height
2.01
Total Width
2.01
