SKU
30265Y
Manufactures SKU
TRUCK-LITE 30265Y

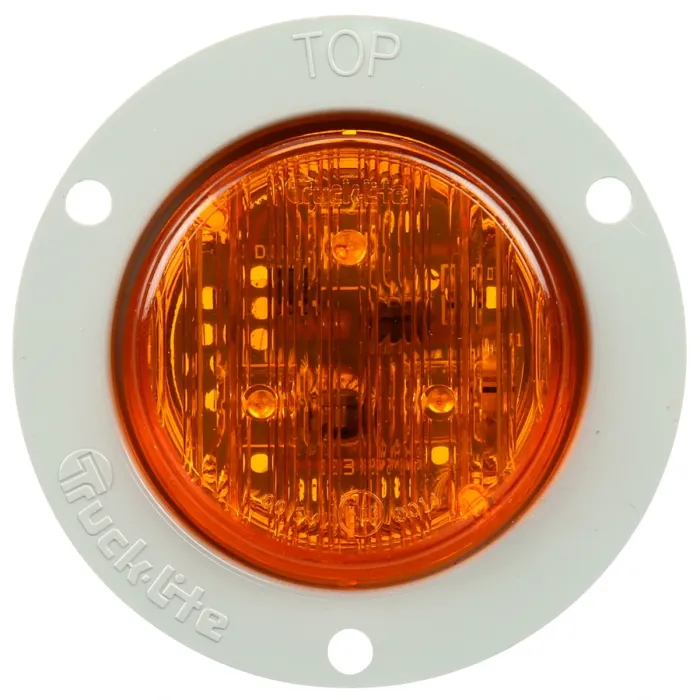

LAMP - MODEL 30 - LED - ECE - MV - AMBER - FLUSH
$13.96
EA
LAMP - MODEL 30 - LED - ECE - MV - AMBER - FLUSH
Features & Benefits
Flange is permanently affixed to lamp - Lamp kits include one plug or harness - Direct pin-to-circuit board solders assure vibration-resistant contacts - Electronics completely sealed in epoxy to resist corrosion and moisture - Low current draw - leaving more power for other vehicle requirements - Sonically sealed lens and housing - LEDs are less susceptible to shock and vibration - Lamp flush mounts with a grommet or flange - Approved to comply with ECE regulations for side marker and end outline marker functions - OmniVolt universal lighting products address increasing vehicle power demands by operating equally in electrical systems that range from 10 to 30 volts
Brand
TRUCK-LITE
Common Size
2
Current Major Amp
0.05
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Fit 'N Forget M/C
Lens Color
Yellow
Lens Height
2
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
2
Lighting Technology
LED
Mount Type
Flange Mount
Mount/Trim Color
Gray
Mount/Trim Material
Polycarbonate
Number of Diodes/Bulbs
1
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
30 Series
Voltage
12 | 24
Compliance Family
ECE
Standards Met
E1
UPC
0735111137931
UNSPSC
25172900
VMRS
034-004-253
Warranty
1-Year
Shipping Weight (lbs)
0.110000
Total Height
2.294
Total Width
2.294
