SAE PC-Rated Performance: Certified for combination clearance and marker light configurations (P2, PC compliant), lowering total vehicle lamp counts.
-
Sleek Low-Profile Design: Reduced depth profile fits into tight mounting areas and minimizes the risk of impact damage from low-hanging obstacles.
-
Brilliant 6-Diode LED Layout: Features 6 premium light-emitting diodes that deliver intensely bright, highly visible red light output.
-
Vibration & Shock Resistant: Filament-free solid-state technology eliminates a leading cause of lighting failure on commercial vehicles.
-
Ultra-Low Electrical Draw: Minimizes power consumption (0.12A) to reduce load on the alternator, outlasting standard filament bulbs.
-
Sealed Weatherproof Polycarbonate: Sonically welded lens and rugged housing completely guard internal electronics from rust and water intrusion.
-
Industry-Standard Installation: Integrates seamlessly using a standard PL-10 plug connection and a standard 2" round rubber mounting grommet.

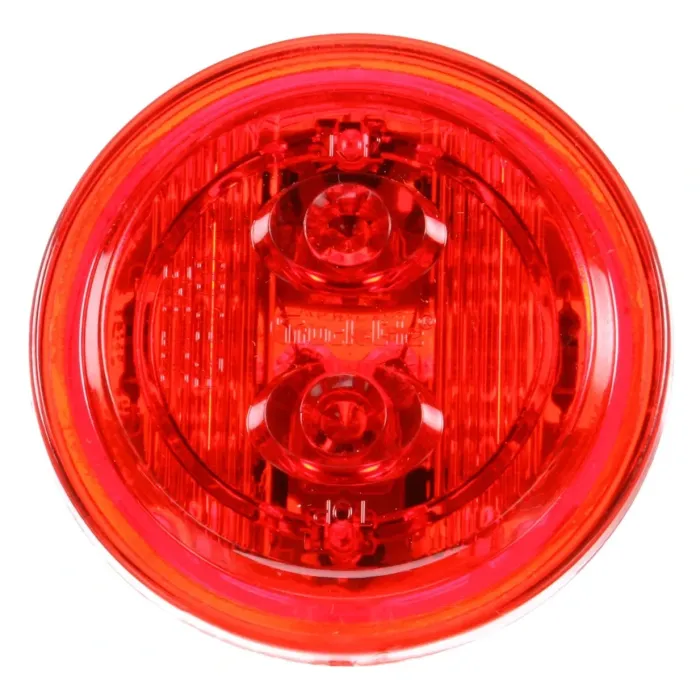

Truck-Lite 30285R – 30 Series Low Profile LED Red Round Marker Clearance Light (6 Diode, PC Rated, PL-10, 12V)
Maximize your commercial fleet’s legal compliance and safety with the Truck-Lite 30285R 30 Series Low Profile LED Red Round Marker Clearance Light. Widely recognized as one of the most advanced, durable, and cost-effective 2-inch round lamps available, this heavy-duty lighting solution is engineered to provide premium illumination while maintaining a sleek, space-saving design on heavy trucks, trailers, box trucks, buses, and vocational fleets.
A standout feature of the Truck-Lite 30285R is its low-profile configuration paired with a certified SAE PC compliance rating. Thanks to its engineered wide-angle lens, this lamp delivers exceptional light dispersion that allows it to serve simultaneously as both a clearance light and side marker lamp when properly positioned at a 45-degree angle. By performing a dual role, it reduces the total number of lighting fixtures required on your vehicle—saving you money on upfront equipment, installation labor, and ongoing fleet maintenance. Utilizing a high-efficiency 6-diode LED layout, it projects crisp, brilliant red illumination that ensures surrounding traffic sees your vehicle clearly from multiple angles.
Built to withstand the unrelenting demands of long-haul transportation, this solid-state lamp features a bulb-free, filament-free construction. This advanced engineering makes it entirely immune to heavy road shocks, potholes, and severe chassis vibrations that easily destroy traditional incandescent bulbs. The energy-efficient LEDs draw a minimal 0.12 Amps, reducing load on your vehicle’s battery and alternator while freeing up critical electrical capacity for other specialized vehicle systems. The rugged polycarbonate lens and housing are sonically sealed into a single, cohesive unit to provide an absolute shield against moisture, road salt, chemical washes, and dust. Outfitted with an industry-standard PL-10 plug connection, it flush-mounts effortlessly using a standard 2-inch round rubber grommet.
