Dual-Function Compliance: Dual SAE P2 and PC rated, making it suitable for combined clearance and side marker applications to lower total component costs.
-
Shock & Vibration Proof: Solid-state LED architecture eliminates fragile filaments, guaranteeing continuous operation under harsh fleet environments.
-
Low Current Draw: Extremely energy efficient, pulling just 0.12 Amps at 12V to preserve battery and alternator life.
-
Integrated Gray Flange Mount: Built-in gray polycarbonate flange provides an exceptionally clean-looking, flush, and rigid exterior install.
-
Hermetically Sealed Construction: The polycarbonate lens and base are fully sealed into a single unit to block out moisture and terminal corrosion.
-
Plug-and-Play Configuration: Employs an industry-standard PL-10 lamp connection for fast, hassle-free pigtail harness wiring.

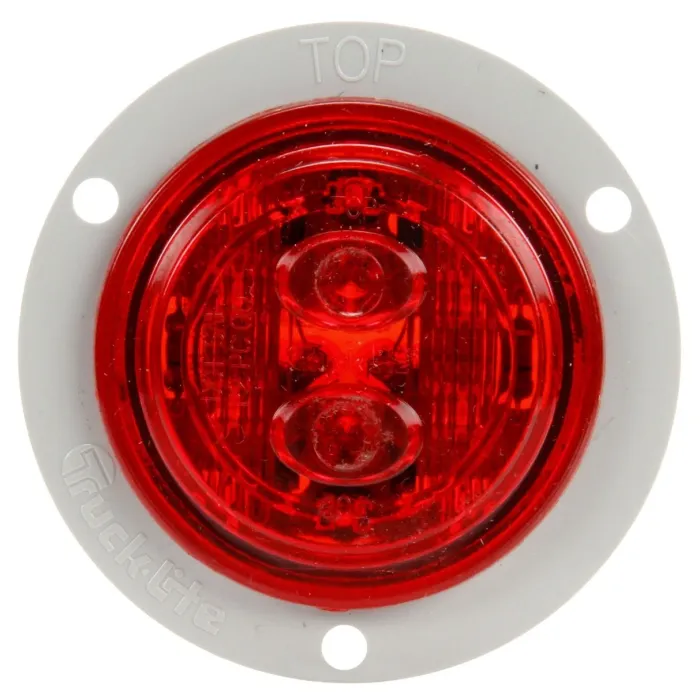

Truck-Lite 30289R – 30 Series, Low Profile, LED, Red Round, 6 Diode, Marker Clearance Light, PC, Gray Polycarbonate Flange Mount, PL-10, 12V
Keep your heavy-duty vehicles visible and DOT-compliant with the Truck-Lite 30289R 30 Series LED Marker Clearance Light. Featuring 6 high-output diodes and an integrated gray polycarbonate flange for a secure, flush-mounted finish, this low-profile 2-inch round red light is engineered for the roughest road conditions. It is built with a fully sealed polycarbonate housing and a standard PL-10 connection, delivering an advanced, dual SAE P2/PC-rated solution that functions simultaneously as a clearance and side marker lamp.
Ensure maximum compliance and elite visibility for your commercial fleet with the ultra-reliable Truck-Lite 30289R Red Round LED Marker Clearance Lamp. Part of Truck-Lite’s advanced 30 Series, this low-profile lighting option delivers a highly efficient and cost-effective 2" clearance solution for commercial heavy-duty trucks and trailers.
Equipped with a 6-diode pattern housed behind a durable red polycarbonate lens, this lamp projects highly visible illumination while relying on solid-state LED technology. Because LEDs lack a fragile filament, the 30289R is entirely immune to the structural damage caused by severe shock, extreme road vibrations, and potholes. Its hermetically sealed lens and housing design ensure that internal electronic components remain perfectly isolated from damaging moisture, dust, and highway debris.
Designed for streamlined exterior mounting and aesthetic integration, this red marker light comes pre-molded into a heavy-duty, sleek gray polycarbonate mounting flange. It utilizes an industry-standard 2-prong PL-10 plug configuration for simple wiring retrofits or replacements. Furthermore, its advanced optics allow it to carry a dual SAE P2 and PC rating. This means when properly mounted at a 45-degree angle, it serves concurrently as both a side marker light and a clearance light—reducing your vehicle's total light count and electrical footprint.
