Impact-Resistant Branch Deflector: Aerodynamic wedge profile deflects physical obstructions to prevent accidental light and housing damage.
-
Surface Mount Versatility: Allows standard 2" flush-mount round lights to be easily adapted into a rugged surface-mounted configuration.
-
Vibration Shock Isolation: Includes a protective black grommet insert that minimizes road shock, helping to extend the operational life of the lamp.
-
PC Compliance Ready: Designed to satisfy federal PC safety visibility requirements at a 45-degree angle when paired with PC-rated lights.
-

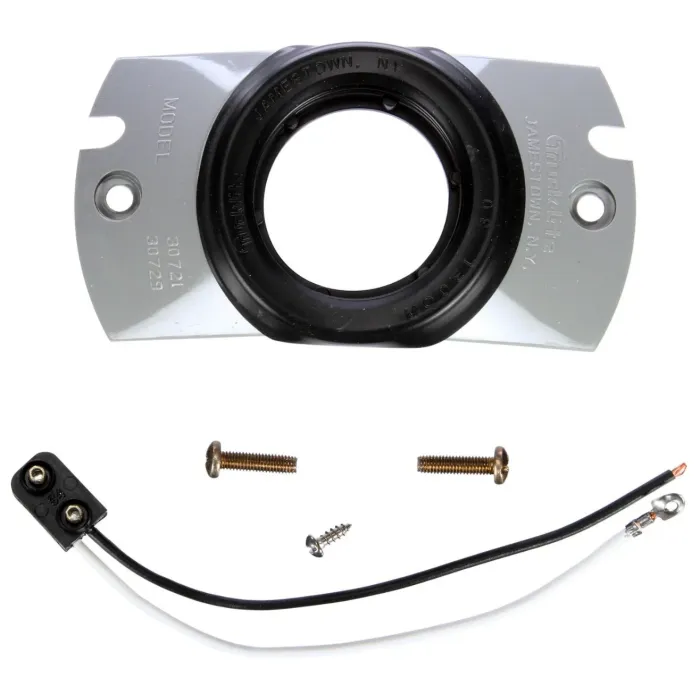

Complete Installation Kit: Consists of the gray polycarbonate deflector housing, black rubber grommet, and pre-wired 2-wire PL-10 right-angle plug pigtail.
-
Direct OEM Interchanges: Engineered to directly replace old or damaged Signal-Stat 9395 and Grote 43690 legacy assemblies.
Truck-Lite 30404 – 30 Series Gray Polycarbonate Branch Deflector Mount Kit with Black Grommet & PL-10 Pigtail (For 2" Round Lights)
Shield your vehicle's secondary lighting from low-hanging tree limbs, brush, and harsh impacts with the Truck-Lite 30404 30 Series Branch Deflector Mount Kit. Engineered specifically for surface-mounting standard 2-inch round shape marker and clearance lights, this heavy-duty installation kit features an integrated, aerodynamic wedge guard. The protective guard deflects low-hanging branches away from the lamp housing, preventing cracked lenses and broken brackets on commercial trucks, flatbeds, and forestry trailers.
Molded from premium, impact-resistant gray polycarbonate material, the Truck-Lite 30404 housing is built to absorb heavy physical shocks without shattering or warping. It is specifically designed to accept a standard black vinyl grommet that acts as an isolated vibration dampener, keeping your delicate LED or incandescent lighting components stable over rough road conditions. When paired with a compatible LED or incandescent PC-rated combination lamp, this angled assembly is engineered to meet strict PC visibility requirements at a 45-degree angle, ensuring total Department of Transportation (DOT) compliance.
This all-in-one installation kit maximizes convenience by packing the entire installation under one SKU. It features an integrated 2-wire, 16-gauge pigtail harness equipped with a standard PL-10 right-angle female plug on one side, paired with a stripped hot wire and ring terminal ground on the other. The heavy-duty housing mounts quickly to any flat trailer side or cab panel using a universal 2-screw bracket mount layout.
