SKU
30504R
Manufactures SKU
TRUCK-LITE 30504R

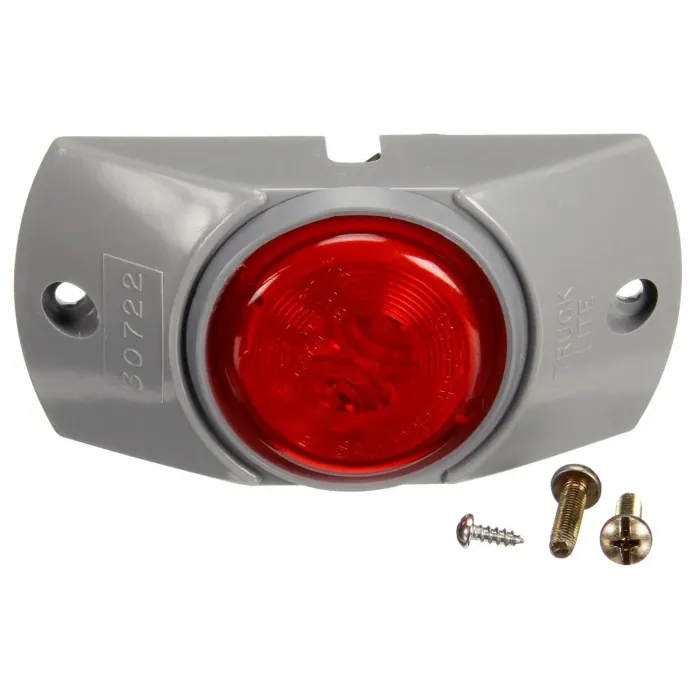

30 Series - Incandescent - Red Round - 1 Bulb - Marker Clearance Light - PC - Gray PVC Bracket Mount - PL-10 - Ring Terminal/Stripped End - 12V - Kit
$9.74
EA
30 Series - Incan. - Red Round - 1 Bulb - M/C Light - PC - Gray Bracket - 12V - Kit
Features & Benefits
High-impact plastic deflector mount - Allows quick and easy surface mounting of 2" diameter lamps - Meets PC requirements on a 45-degree angle using standard combination lamps - Not recommended for LED applications - Replaces Signal-Stat 9388
Brand
TRUCK-LITE
Common Size
2
Current Major Amp
0.33
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
PL-10
Lens Color
Red
Lens Height
2
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
2
Lighting Technology
Incandescent
Mount Type
Bracket Mount Kit
Mount/Trim Color
Gray
Mount/Trim Material
PVC
Mounting Connector Diameter
0.203
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
30 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | P3 | PC
UPC
0735111040743
UNSPSC
25172900
VMRS
034-004-021
Warranty
1-Year
Shipping Weight (lbs)
0.180000
Total Height
2.34
Total Width
4.8
