SKU
3053A
Manufactures SKU
TRUCK-LITE 3053A

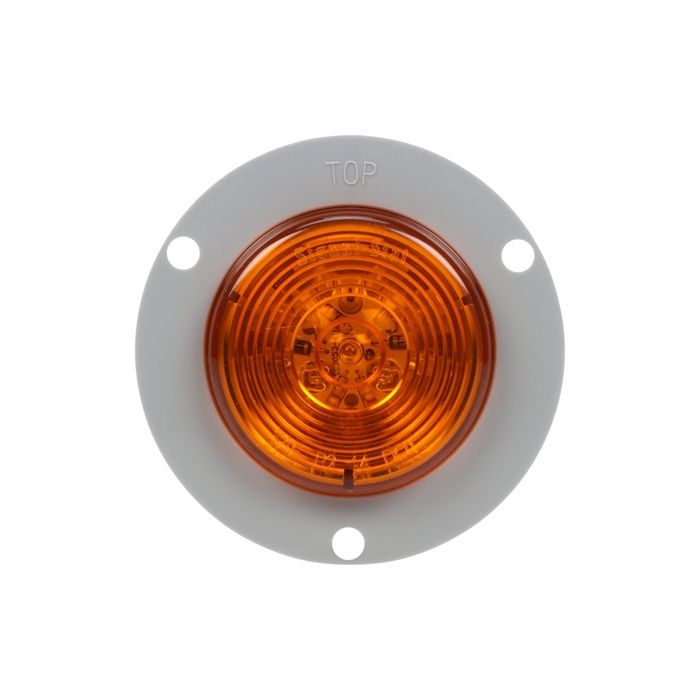

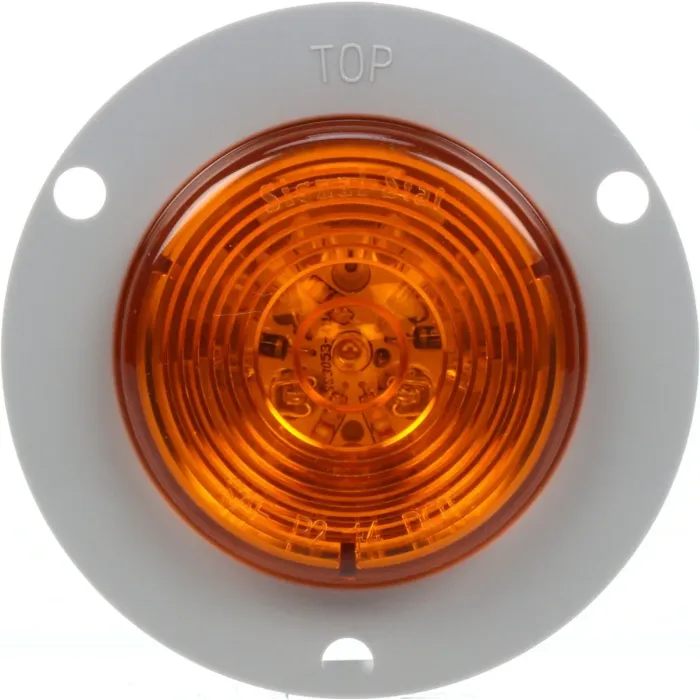

Signal-Stat - LED - Amber Round - 10 Diodes - Marker Clearance Light - P2 - Gray Polycarbonate Flange Mount - PL-10 - 12V
$6.89
EA
Signal-Stat - LED - Amber Round - 10 Diodes - M/C Light - P2 - Gray Flange Mount - 12V
Features & Benefits
Housing and flange are molded together to form one piece - Uses standard PL-10 connector - Designed with impact-resistant polycarbonate material - When properly mounted - exceeds FMVSS-P2 DOT requirements for marker/clearance performance - LEDs do not have a filament - therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb - Epoxy-encapsulated electronics prevents damage from moisture and corrosion - Popular on owner/operator and show trucks - Lamps come with Truck-Lite 2-Year Limited Warranty
Brand
Signal-Stat
Common Size
2
Current Major Amp
0.06
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-10
Lens Color
Yellow
Lens Height
2
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
2
Lighting Technology
LED
Mount Type
Flange Mount
Mount/Trim Color
Gray
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
2.16
Number of Diodes/Bulbs
10
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111189640
UNSPSC
25172900
VMRS
034-004-021
Warranty
2-Year
Shipping Weight (lbs)
0.100000
Total Height
2.9
Total Width
2.9
