SKU
33010C
Manufactures SKU
TRUCK-LITE 33010C

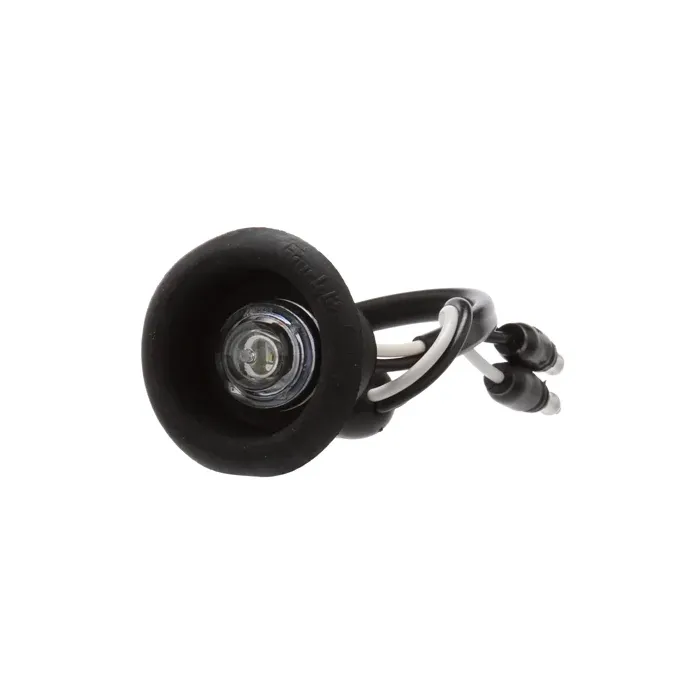

33 Series - LED - 1 Diode - License Light - Round - Grommet Mount - Hardwired - .180 Bullet - 12V - Kit
$26.15
EA
33 Series - LED - 1 Diode - Round - License Light - Grommet - 12V - Kit
Features & Benefits
Hardwired lamp design is easily retrofitted - with only a 1-3/16in mounting hole required for grommet installation - US Patent 5 -943 -798 - Product designed to fit in 33705 grommet - Top and side plate mounting options - When mounted into a module - all wires are hidden inside module - protecting against damage from corrosion - Does not require a bracket - so it can be mounted directly into the vehicle - Stealth - low-profile design is resistant to damage - and hides lamp away from view to help prevent theft - LEDs draw less current - allowing more power for other vehicle requirements - Reduces lighting costs due to physical damage and heat entrapment - Electronics are completely sealed in epoxy to resist corrosion and moisture
Brand
TRUCK-LITE
Common Size
0.75
Current Amp
0.15
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Clear
Lens Height
0.72
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
1.06
Lighting Technology
LED
Mount Type
Grommet Kit
Mount/Trim Color
Black
Mount/Trim Material
Rubber
Mounting Connector Diameter
1.187
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
License Light
Sealed/Bulb Replaceable
Sealed
Series
33 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
L
UPC
0735111175605
UNSPSC
25172900
VMRS
034-002-042
Warranty
5-Year
Shipping Weight (lbs)
0.080000
Total Height
0.72
Total Width
0.72
