Common Size: 0.75" (3/4" Diameter Pattern | Actual Lens: 0.72" W x 0.72" H)
-
Total Assembly Dimensions: 1.16" Height x 1.16" Width x 0.98" Total Depth
-
Mounting Style: Mechanical Chrome Nylon Flange / Grommet Mount (Requires 0.75" cutout)
-
Voltage & Power: 12V DC | 0.13A High-Amp Current Draw
-
Connection Profile: Hardwired 18 AWG 2-wire pigtail with dual .180 bullet terminals
-
Weather Proofing: Fully epoxy-encapsulated waterproof electronics
-
Intellectual Property: Protected under US Patent #6612728
-
Warranty Support: Premium Truck-Lite 5-Year Limited Warranty

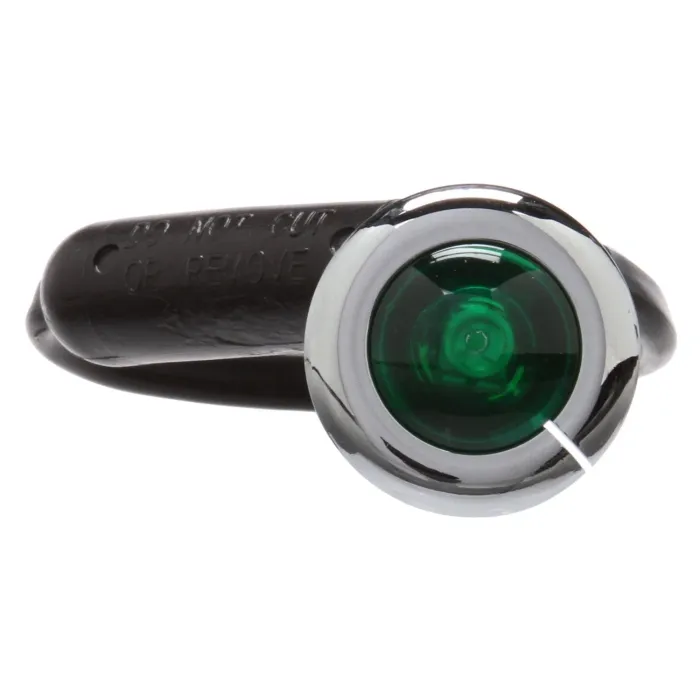

Truck-Lite 33062G Super 33 0.75" Round LED Green Interior Utility Light Kit – 1-Diode, High Amp, Chrome Flange Mount, Hardwired 12V
Give your commercial vehicle, custom rig, or fleet truck a high-end look while introducing premium solid-state lighting with the Truck-Lite 33062G Super 33 0.75" Round LED Green Interior Utility & Dome Light Kit. Engineered by the industry leader in heavy-duty commercial vehicle lighting, this high-amp, single-diode auxiliary lamp packs a rich, vibrant green LED beam into an ultra-compact 3/4" footprint. Outfitted with a polished chrome flange, this complete installation kit provides a striking show-truck look that beautifully complements your interior accents or custom console trim.
As an exclusive member of the high-performance Super 33 Series, the 33062G utilizes advanced internal engineering to drive its single green LED diode at a higher, high-amp current. This proprietary design results in an auxiliary beam pattern that is up to five times brighter than standard miniature marker lamps. It serves as an excellent choice for targeted interior placement—including truck cabs, walkways, underneath custom dashboards, glove boxes, footwells, control panels, and specialized cabin layout lighting where eye-friendly green ambient light is preferred to preserve night vision.
Unlike friction-fitted rubber grommets, the Truck-Lite 33062G features an integrated chrome-finished nylon flange mount (often referred to as a chrome grommet mount). This physical flange fastens firmly to your vehicle panels using screws or rivets, offering superior pull-out resistance in high-vibration truck and trailer environments. Its low-profile, flush-recessed construction minimizes the threat of physical damage from impacts, scuffs, or shifting gear. To shield the solid-state electronics from the elements, the entire unit is hermetically sealed and fully encapsulated in marine-grade epoxy, blocking out moisture, dust, and internal corrosion.
Upgrading or retrofitting your vehicle’s courtesy and utility lighting configuration is completely hassle-free. The 33062G comes as a complete installation kit featuring a hardwired 18-gauge, 2-wire pigtail terminated with standard .180 bullet connectors. It snaps securely into a clean, standard 0.75" diameter cutout using the included chrome flange, ensuring a professional, watertight fit.
Note: This high-output green LED light is designed strictly for auxiliary, interior utility, custom accent, or dome lamp configurations. It is not rated or intended for primary exterior safety marker or clearance lighting applications unless properly wired to an independent, dedicated switch.
