Dual-Function Performance: Functions as a side marker, clearance light, auxiliary turn, and auxiliary stop light.
-
Superior Brightness: Best-in-class auxiliary brake function is 7x brighter than the baseline marker function.
-
Ultra-Compact Design: Smallest 0.75" profile maximizes layout flexibility for modern trailer panels and rear door structures.
-
Heavy-Duty Construction: Impact-resistant red polycarbonate lens with a sealed epoxy housing that blocks out water and corrosion.
-
Easy Installation: Pre-wired 3-wire hardwired lead with .180 bullet terminals; fits snugly into any standard 3/4" mounting hole using the included closed-back rubber grommet.
-
Regulatory Compliance: Exceeds DOT, SAE, FMVSS 108, and CMVSS 108 legal requirements for P2 rating.
-
Peace of Mind: Backed by Truck-Lite's industry-leading Limited Lifetime Warranty.

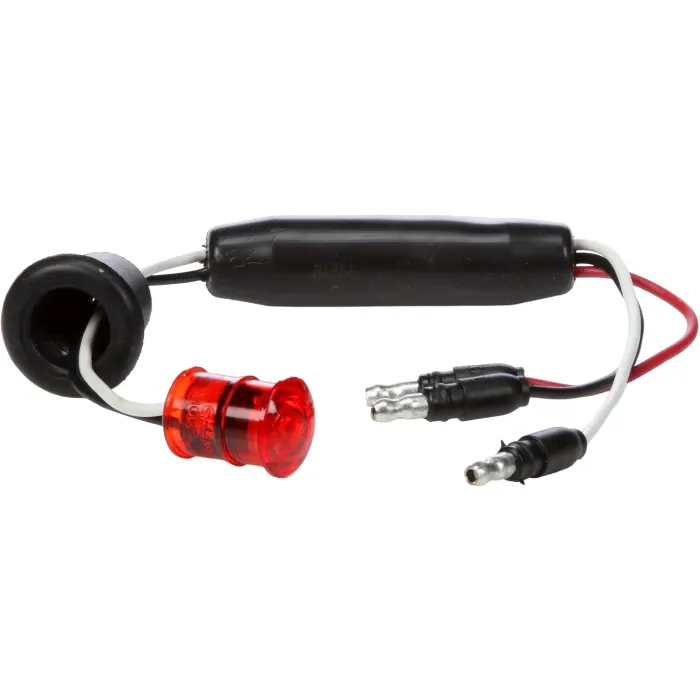

Truck-Lite 33206R 33 Series LED 0.75" Round 1-Diode Red Marker Clearance Light Kit – Dual Function, Black Rubber Closed-Back Grommet, Hardwired 12V
Upgrade your fleet or trailer's safety lighting with the Truck-Lite 33206R 33 Series LED Red Round Marker Clearance Light Kit. Recognized as the world’s smallest LED marker lamp for the commercial transportation industry, this compact 0.75-inch, 3-wire light does much more than clear side legalities. When properly installed, it functions seamlessly as a dual-purpose auxiliary turn, auxiliary stop, and clearance marker light. Featuring an engineered auxiliary brake function that delivers output seven times brighter than the standard marker light, it provides crucial extra visibility when braking or turning in heavy traffic or harsh weather.
Designed to withstand the punishing environments of long-haul heavy-duty trucking, the Truck-Lite 33206R features completely epoxy-sealed electronics that shrug off moisture, road salt, and corrosion. Its non-filament solid-state LED design ensures it remains fully resistant to harsh shocks and severe vehicle vibration. Wrapped in an impact-resistant, high-temperature red polycarbonate lens and supported by a robust black rubber closed-back grommet mount, this light is engineered to lower your long-term maintenance costs by preventing physical damage and heat entrapment.
The hardwired 3-wire system comes ready with .180 male bullet terminals, allowing you to easily replace or retrofit outdated incandescent lamps. Because modern LEDs draw significantly less current (Major: 0.17 Amps / Minor: 0.02 Amps), they alleviate alternator load, preserving battery life and leaving plenty of power for the rest of your truck or trailer's electrical systems.
Grote: 49362
NAPA: 33206R
Peterson Lighting: M177R-BT2
