SKU
33250Y
Manufactures SKU
TRUCK-LITE 33250Y

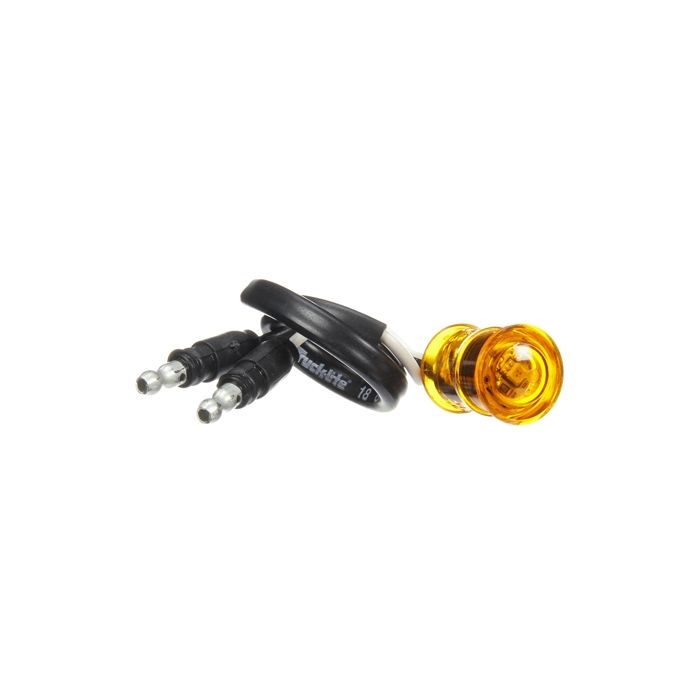

33 Series - LED - Yellow Round - 1 Diode - Marker Clearance Light - P2 - Hardwired - .180 Bullet Terminal - 12V
$12.77
EA
33 Series - LED - Yellow Round - 1 Diode - M/C Light - P2 - 12V
Features & Benefits
US patent 7 -658 -524 - World's smallest LED marker lamp for the transportation industry - Exceeds legal requirements - Hardwired lamp design is easily retrofitted - LEDs draw less current - allowing more power for other vehicle requirements - Electronics completely sealed in epoxy to resist corrosion and moisture - Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility - Requires 3/4" mounting hole - Reduces lighting costs due to physical damage and heat entrapment - Material thickness for flange is 040in - 250in - Material thickness for grommet is 125in - 250in
Brand
TRUCK-LITE
Common Size
0.75
Current Major Amp
0.05
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
0.72
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
0.72
Lighting Technology
LED
Mount Type
Grommet Mount
Mounting Connector Diameter
0.75
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
33 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111138679
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.060000
Total Height
0.72
Total Width
0.72
