Extended 24" Harness: Built-in 24-inch hardwired lead eliminates the need for manual wire extensions or extra splices, speeding up fleet retrofits.
-
Ultra-Compact Footprint: The miniature 3/4" profile gives trailer engineers, bodybuilders, and custom fabricators maximum design flexibility in tight headers, rails, or bumpers.
-
Advanced Sealed Protection: Fully encapsulated electronics sealed in heavy-duty epoxy prevent failure from water intrusion, moisture, corrosion, dust, and heavy road vibration.
-
High Efficiency & Low Draw: Uses advanced 1-diode LED technology that draws remarkably low current (approx. 0.05A), relieving strain on your vehicle's 12V electrical system.
-
Impact-Resistant Lens: Manufactured with high-grade yellow/amber polycarbonate to prevent routine physical lens cracking from rocks and debris.
SKU
33256Y
Manufactures SKU
TRUCK-LITE 33256Y

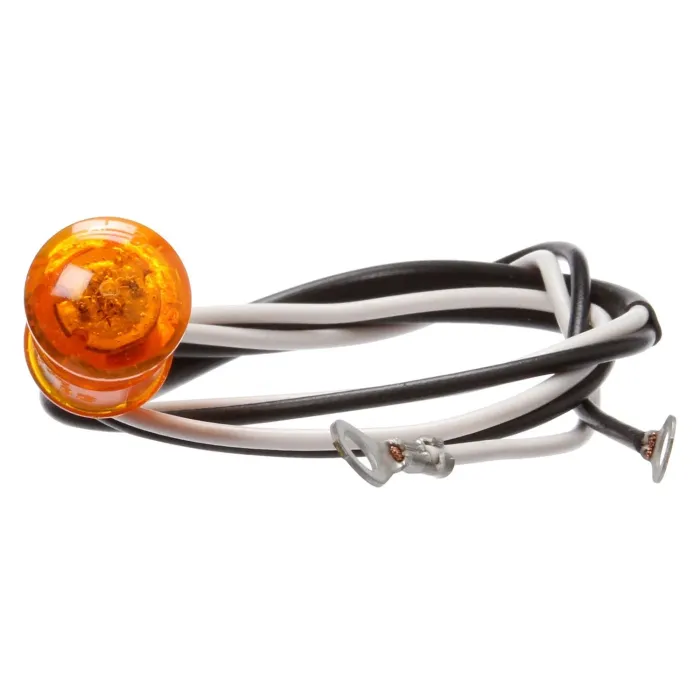

Truck-Lite 33256Y – 33 Series LED 0.75" Round Single Marker Clearance Light, 1 Diode, Yellow Polycarbonate Lens, Grommet Mount, Hardwired 12V with 24-Inch Harness, P2
$19.55
EA
Upgrade your commercial heavy-duty vehicle or trailer with the Truck-Lite 33256Y 33 Series LED 0.75" Round Marker Clearance Light. Famed for being the world’s smallest LED marker lamp for the transportation industry, this compact model includes an extended 24-inch hardwired harness lead to offer maximum wiring flexibility during installations. Featuring a single high-efficiency diode encapsulated behind a rugged yellow polycarbonate lens, this small footprint light packs exceptional visibility while seamlessly meeting and exceeding legal FMVSS 108 requirements.
Key Details
Brand
TRUCK-LITE
Common Size
0.75
Current Major Amp
0.03
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
0.98
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
0.72
Lighting Technology
LED
Mount Type
Grommet Mount
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
33 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111174158
UNSPSC
25172900
VMRS
034-004-021
Warranty
Lifetime
Shipping Weight (lbs)
0.060000
Total Height
25.61
Total Width
0.72
