SKU
33285Y
Manufactures SKU
TRUCK-LITE 33285Y

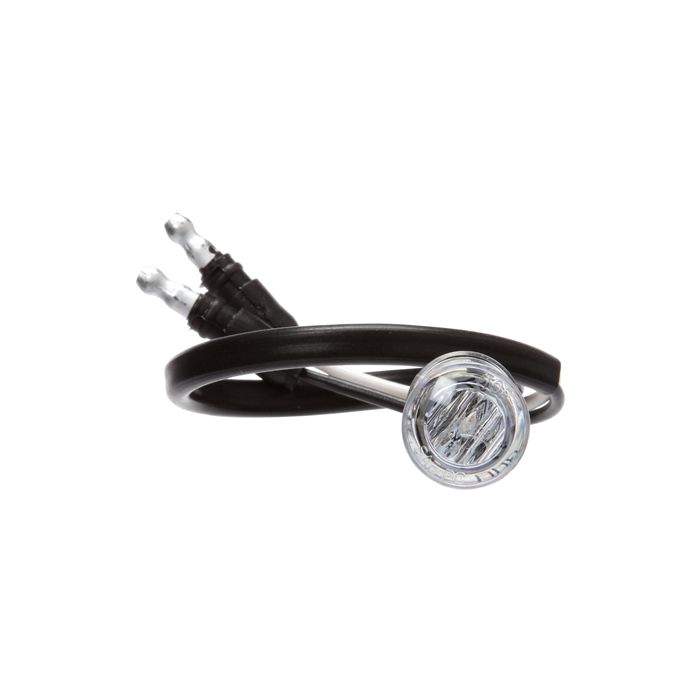

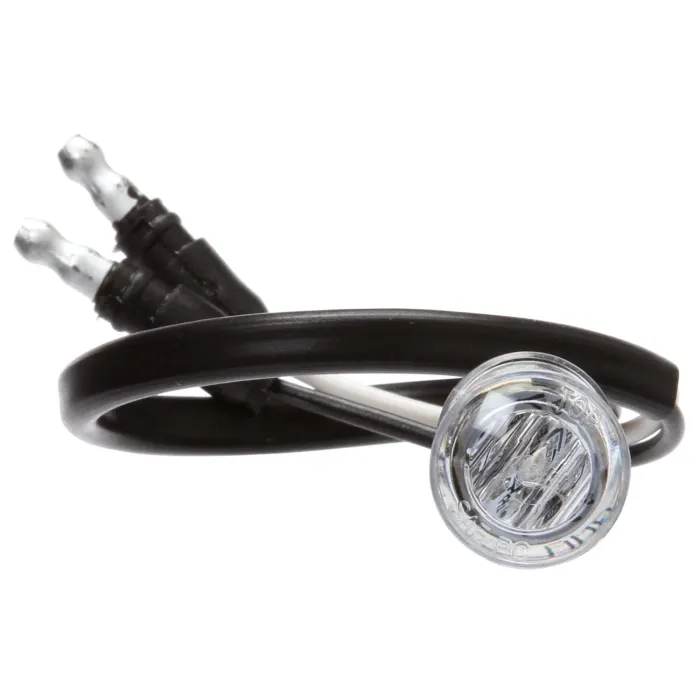

33 Series - LED - Clear/Yellow Round - 1 Diode - Marker Clearance Light - PC - Hardwired - .180 Bullet Terminal - 12V
$19.35
EA
33 Series - LED - Clear/Yellow Round - 1 Diode - M/C Light - PC - 12V
Features & Benefits
US patent 7 -658 -524 - World's smallest LED marker lamp for the transportation industry - Exceeds legal requirements - Hardwired lamp design is easily retrofitted - LEDs draw less current - allowing more power for other vehicle requirements - Electronics completely sealed in epoxy to resist corrosion and moisture - Offers trailer engineers and manufacturers new trailer and rear door structure design flexibility - Requires 3/4" mounting hole - Reduces lighting costs due to physical damage and heat entrapment - Material thickness for flange is 040in - 250in - Material thickness for grommet is 125in - 250in
Brand
TRUCK-LITE
Common Size
0.75
Current Major Amp
0.14
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Clear | Yellow
Lens Height
0.72
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
0.72
Lighting Technology
LED
Mount Type
Grommet Mount
Mounting Connector Diameter
0.75
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
33 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111184935
UNSPSC
25172900
VMRS
034-004-021
Warranty
Lifetime
Shipping Weight (lbs)
0.040000
Total Height
0.72
Total Width
0.72
