Curved Corner Profile: Pre-shaped curved deflector body engineered specifically to fit perfectly against a 4.6-inch radius corner on semi-truck cabs, trailers, and vocational bodies.
-
Impact-Resistant Gray ABS Shell: Forged from rigid, high-grade ABS composite that resists cracking, chipping, weathering, and harsh road chemicals.
-
19 Series Drop-In Retrofit: Intentionally engineered to share the same hardware mounting footprint as legacy 19 Series brackets for instant fleet-wide replacements.
-
45-Degree PC Clearance Compliance: Fully satisfies strict DOT/SAE PC safety requirements when mounted at a 45-degree angle using an approved LED or incandescent PC-rated combination lamp.
-
Exterior Wire Management: Converts standard flush-mount mini lamps into a secure surface-mounted setup, keeping wiring safe, contained, and positioned outside the vehicle pane.
-
Stable 2-Screw Anchor Point: Features dual-point pre-drilled hardware channels with a 0.207-inch diameter to hold the bracket tightly against high highway vibrations.

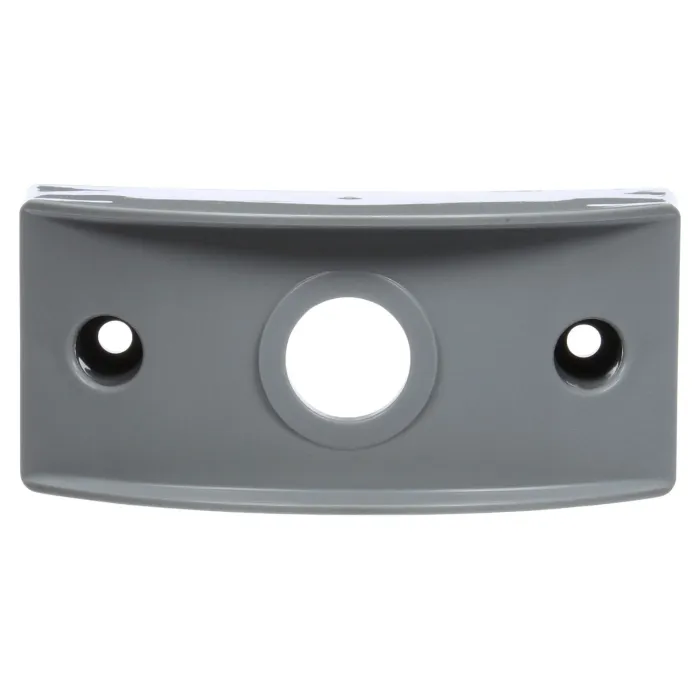

Truck-Lite 33715 – 33 Series 0.75" (3/4 Inch) Round Gray ABS Curved Surface Mount Light Bracket
Clean up your commercial vehicle's contours and safely anchor your safety lighting on tight radiuses with the heavy-duty Truck-Lite 33715 33 Series Curved Bracket Mount. Specifically engineered to house standard 3/4-inch round mini clearance, side marker, and utility identification lamps, this specialized surface-mount housing is pre-formed with a curved footprint designed to mount onto a 4.6-inch radius corner.
Molded from high-impact, industrial-strength gray ABS plastic, the Truck-Lite 33715 acts as a protective deflector pod that allows standard 3/4-inch grommet or flange-mount lamps to be surface-mounted cleanly. By routing all wiring safely outside the vehicle body, it protects your vehicle panels while providing a seamless, drop-in retrofit for older, legacy 19 Series bracket footprints.
