SKU
33740R
Manufactures SKU
TRUCK-LITE 33740R

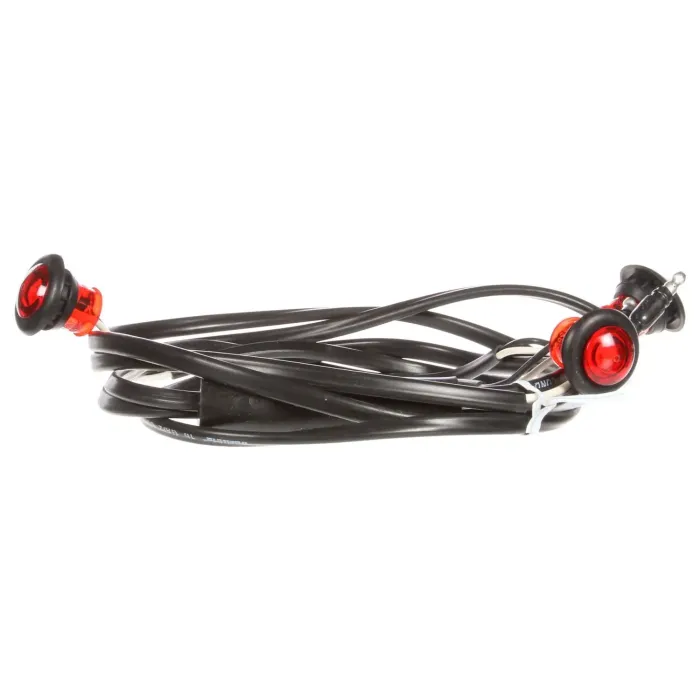

33 Series - LED - ID Light Assembly - Round - Red - 3 Lights - Black - 12V - Kit
$44.94
EA
33 Series - LED - Red - Round - ID Light Assembly - Black - 12V - Kit
Features & Benefits
US patent #6612728 - World smallest LED marker lamp for the transportation industry - Hardwired lamp design is easily retrofitted - Requires 3/4in mounting hole - Additional part numbers available with extended harness lengths - call customer service for details
Brand
TRUCK-LITE
Common Size
0.75
Current Major Amp
0.05
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
0.72
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
0.72
Lighting Technology
LED
Mount Type
Grommet Kit
Mount/Trim Color
Black
Mount/Trim Material
PVC
Mounting Connector Diameter
0.75
Number of Diodes/Bulbs
1
Number of Lights
3
Number of Wires
2
Product Type
ID Light Assembly
Sealed/Bulb Replaceable
Sealed
Series
33 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2
UPC
0735111134442
UNSPSC
39111706
VMRS
034-004-149
Warranty
Lifetime
Shipping Weight (lbs)
0.540000
Total Height
0.97
Total Width
0.72
