Military-Grade Durability: Built for extreme environments with epoxy-sealed electronics that resist high-impact shock and intense road vibrations.
-
OmniVolt® Technology: Multi-voltage compatibility operates seamlessly on both 12-volt and 24-volt electrical systems without adjustment.
-
Dual-Diode LED Output: 2-diode high-visibility design drawing only 0.05 Amps, outlasting incandescent alternatives by nearly 50x.
-
Fit 'N Forget® Connection: Fully sealed, corrosion-proof M/C lamp connection paired with robust 16-gauge wire leads (.180 bullet and ring terminals).
-
Strict Compliance: Fully meets FMVSS 108, CMVSS 108, DOT, and dual SAE P2/P3 standards for marker clearance and rollback applications (0° to 34°).
SKU
35004R
Manufactures SKU
TRUCK-LITE 35004R

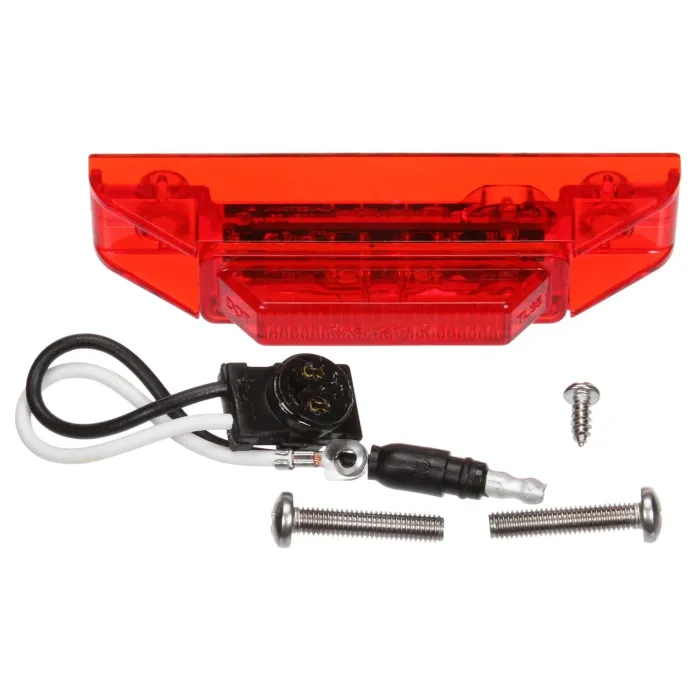

Truck-Lite 35004R – 35 Series Military Grade Red Rectangular 2-Diode LED Marker Clearance Light Kit (OmniVolt 12-24V)
$15.39
EA
Ensure your heavy-duty fleet, military transport, or commercial trailer stands up to the most demanding conditions with the Truck-Lite 35004R 35 Series Military LED Marker Clearance Light Kit. Engineered for severe-duty and narrow rail designs, this slim 3/4" wide rectangular light features OmniVolt® multi-voltage compatibility (12V/24V) and a dual-diode configuration. Fully sealed in protective epoxy with a plug-and-play Fit 'N Forget® connection, it offers a robust, corrosion-resistant lighting solution with a lifetime warranty.
Invest in commercial and military-grade reliability with the Truck-Lite 35004R 35 Series Red Rectangular LED Marker Clearance Light Kit. Specifically developed to withstand severe operating environments, this Model 35® premium light assembly delivers reliable, high-visibility red illumination for narrow frame rails and tight-clearance trailer locations.
Equipped with Truck-Lite’s advanced OmniVolt® Technology, this lamp automatically adapts to either 12V or 24V electrical networks, making it a universal form-fit-function upgrade for heavy-duty commercial fleets, utility applications, and tactical military vehicles. The internal 2-diode configuration draws a low 0.05 Amps, massively cutting electrical strain while offering an operational lifespan that surpasses standard incandescent lighting by nearly 50 times.
Engineered to endure the toughest roads, the lens and housing are molded from impact-resistant polycarbonate. The interior electronics are completely encapsulated in a heavy-duty epoxy seal to neutralize damage from moisture, dust, and continuous road vibration. Installation is quick and corrosion-resistant thanks to the Fit 'N Forget® M/C vehicle plug system, complete with a dual 16-gauge wiring harness featuring a .180 bullet terminal and a ring terminal. Compliant with strict DOT, SAE P2/P3, and FMVSS 108 regulations, this kit ensures your truck or trailer remains completely street-legal and highly visible.
Key Details
Brand
TRUCK-LITE
Common Size
1 x 4
Current Major Amp
0.05
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
Fit 'N Forget M/C
Lens Color
Red
Lens Height
0.75
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
4
Lighting Technology
LED
Mount Type
2 Screw
Mount/Trim Color
Red
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
0.22
Number of Diodes/Bulbs
2
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
35 Series
Voltage
12 | 24
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
NSN
6220-01-516-4923
Standards Met
P2 | P3
UPC
0735111066019
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.200000
Total Height
0.75
Total Width
4
