OmniVolt Multi-Voltage System: Compatible with both 12V and 24V systems (10V to 30V operating range), making it a single-part solution for mixed-voltage fleets.
-
Radius-Mount Winged Profile: Purpose-built to wrap cleanly around radius corners, curved panels, and tight frame areas where standard flat-mount lights fail.
-
Tool-Free Adhesive Mounting: Adheres instantly to clean metal, aluminum, or fiberglass surfaces using weather-resistant adhesive backing with an easy-to-use peel-off liner (optional 2-screw mount configuration supported).
-
Self-Sealing Rear-Exit Wiring: Feed wires directly through a 3/8" mounting hole. The lamp's flexible backing acts as an integrated gasket to self-seal the entry point upon installation.
-
Dual-Function PC Compliance: Fully certified to meet DOT P2 and PC-rating standards, providing a wide 180-degree visibility arc so a single lamp can serve as both a side marker and clearance light.
-
Hermetically Epoxy-Sealed: Solid-state, bulb-free circuitry is completely encased in a defensive layer of epoxy, securing the 3-diode array against water, moisture, road salt, and harsh vibrations.
-
Bullet Terminal Connections: Pre-terminated with a hardwired harness featuring one male .180 bullet and one female .180 bullet terminal for easy, retrofit-ready plug-and-play wiring.

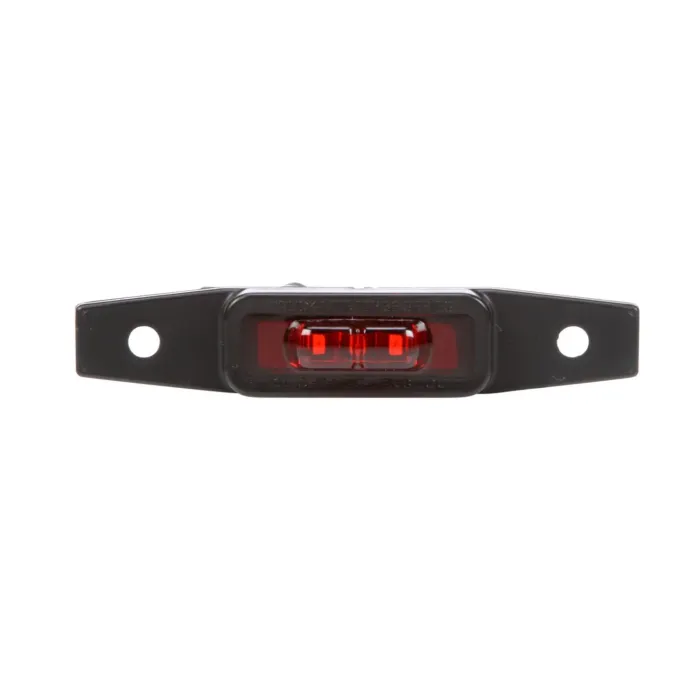

Truck-Lite 36130R 36 Series Flex-Lite Red Winged LED Marker Clearance Light – 3 Diode, Rear Exit, 12V-24V Multi-Voltage, Adhesive/Screw Mount
Overcome challenging radius-corner mounting applications and mixed-voltage fleet demands with the Truck-Lite 36130R 36 Series Flex-Lite Red Winged LED Marker Clearance Light. Engineered with Truck-Lite’s advanced OmniVolt (Univolt) technology, this versatile lamp operates seamlessly across 12-Volt and 24-Volt electrical systems (10V to 30V range). It is the perfect lighting solution for commercial semi-trucks, heavy-duty trailers, buses, and industrial utility vehicles.
Featuring a highly specialized "winged" body design, this innovative Flex-Lite lamp is built to conform smoothly around curved vehicle borders, radius trailer corners, and aerodynamic cab contours. Forget about bulky mounting brackets; the 36130R includes a high-bond peel-and-stick adhesive backing for quick, tool-free installation. Designed with a rear-exit wire configuration, the wiring routes directly through a small 3/8" hole, which the lamp's flexible backing automatically self-seals to block out water, road grime, and salt.
