SKU
36130Y
Manufactures SKU
TRUCK-LITE 36130Y

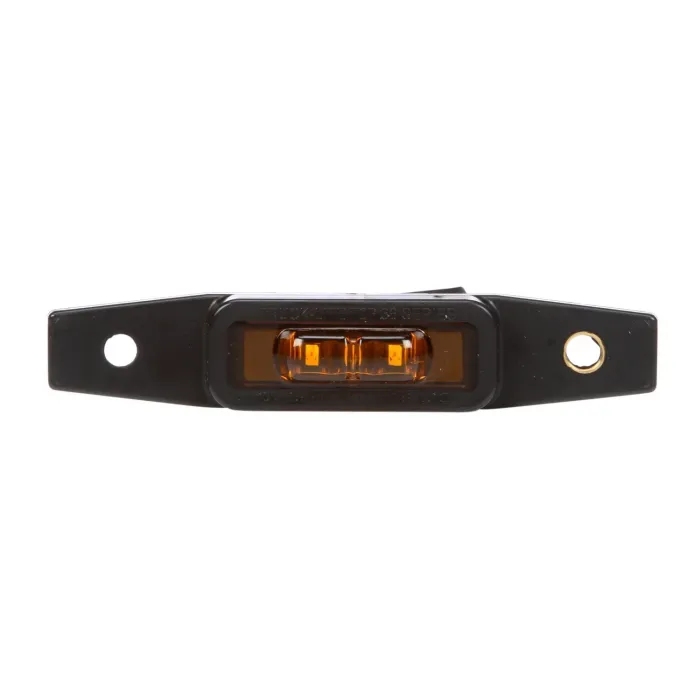

36 Series - Flex-Lite Rear Exit - LED - Yellow Winged - 3 Diode - Marker Clearance Light - PC - Adhesive Mount - Hardwired - .180 Bullet/Female .180 Bullet - 12-24V
$26.40
EA
36 Series - LED - Yellow Winged - 3 Diode - Flex-Lite Rear Exit - M/C Light - PC - Adhesive - 12-24V
Features & Benefits
Winged housing provides option for mounting around corners on a radius - Provides a clearance/marker solution that requires no mounting brackets or installation screws - Lamps adhere directly to application surface through the use of heavy-duty adhesive backing - Easy-to-install peel-off liner - Hardwired lamp design is easily retrofit able - Rear exit wire version requires a 3/8 mounting hole - and self-seals hole upon installation - Side mount options can be mounted without any mounting holes - LEDs draw much less current - allowing more power for other vehicle requirements - Electronics are completely sealed in epoxy to resist damage caused by moisture and corrosion - Reduces lighting costs caused by physical damage and heat entrapment
Brand
TRUCK-LITE
Common Size
1 x 2
Current Major Amp
0.05
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
0.56
Lens Material
Polycarbonate
Lens Shape
Winged
Lens Width
1.36
Lighting Technology
LED
Mount Type
Adhesive Mount | 2 Screw
Mount/Trim Color
Black
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
0.375
Number of Diodes/Bulbs
3
Number of Wires
2
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
36 Series
Voltage
12 | 24
Wire Gauge
20
Compliance Family
FMVSS 108 | CMVSS108 | DOT | SAE
Standards Met
P2 | PC
UPC
0735111185000
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.040000
Total Height
0.71
Total Width
3.93
