SKU
36203Y
Manufactures SKU
TRUCK-LITE 36203Y

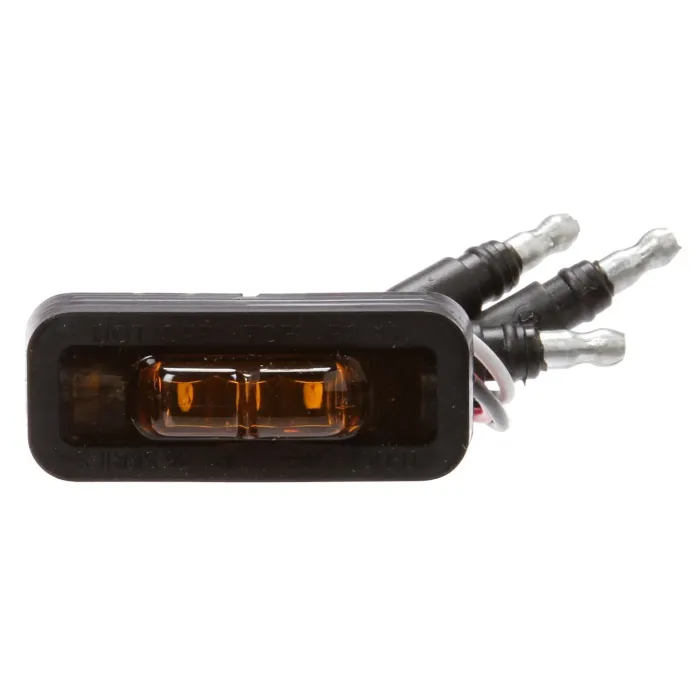

36 Series - Dual-Function - Flex-Lite - LED - Rectangular - Yellow - 3 Diode - Black - 12V
$26.58
EA
36 Series - Dual-Function - LED - Flex-Lite - Yellow - Rectangular - 3 Diode - Black - 12V
Features & Benefits
Lamps operate in minor and major output levels; major function activated by the brake function or turn signal - Yellow Major function is 3 times brighter than minor function - Red Major function is 7 times brighter than minor function - Provides marker/clearance solution that requires no mounting brackets or installation screws - Lamps adhere directly to application surface through use of heavy-duty adhesive backing - P2-Rated - Electronics are completely sealed in epoxy to resist damage caused by moisture and corrosion - Easy-to-install peel-off liner - Rear exit wire version requires a 3/8" mounting hole - and self-seals hole upon installation - Care should be taken for proper installation - Please contact Truck-Lite Technical Support at 888-562-5012 for details
Brand
TRUCK-LITE
Common Size
1 x 2
Current Major Amp
0.06
Current Minor Amp
0.02
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Yellow
Lens Height
0.55
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
1.89
Lighting Technology
LED
Mount Type
Adhesive Mount
Mount/Trim Color
Black
Mount/Trim Material
PVC
Mounting Connector Diameter
0.375
Number of Diodes/Bulbs
3
Number of Wires
3
Product Type
Marker Clearance Light
Sealed/Bulb Replaceable
Sealed
Series
36 Series
Voltage
12
Wire Gauge
20
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2
UPC
0735111182276
UNSPSC
25172900
VMRS
034-004-253
Warranty
Lifetime
Shipping Weight (lbs)
0.030000
Total Height
0.76
Total Width
1.89
