SKU
37450C
Manufactures SKU
TRUCK-LITE 37450C

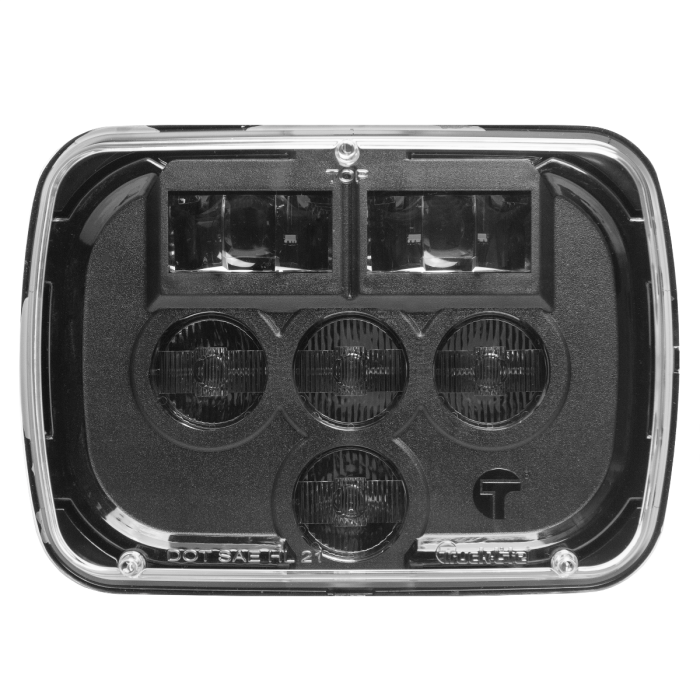

37 Series, LED, 5"x7", Rectangular, 6 Diode , Clear, Polycarbonate Lens, Hardwired, High Beam and Low Beam, Direct LED Headlight
$200.97
EA
The TL 37 Series Direct LED Headlights, in a durable rectangular 5"x7" design with 6 diodes for both high and low beam patterns, offer reliable and versatile lighting for improved visibility in various conditions.
- 37 Series
- LED
- 5"x7" Rectangular
- 6 Diode
- Clear, Polycarbonate Lens
- Hardwired
- High Beam and Low Beam
- Direct LED Headlight
Beam Pattern
High | Low
Brand
TRUCK-LITE
Common Size
5 x 7
Current Major Amp
2.00A-3.70A @ 12.8V 1.05A-1.90A @ 25.8V
Current Minor Amp
1.38A-1.98A @ 12.8V 0.70A-1.00A @ 25.8V
Housing Material
Die-Cast Aluminum
Lamp Connection
Hardwired
Lens Color
Clear
Lens Height
1.15
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
5.591
Lighting Technology
LED
Number of Diodes/Bulbs
6
Number of Wires
3
Plug Side One
Hardwired
Plug Side Two
H4 Connector
Product Type
Headlamp
Sealed/Bulb Replaceable
Sealed
Series
37 Series
Wire Gauge
16
Compliance Family
FMVSS 108|CMVSS 108|DOT|SAE
Shipping Weight (lbs)
2.300000
Total Height
5.591
Total Width
7.819
