SKU
37645C
Manufactures SKU
TRUCK-LITE 37645C

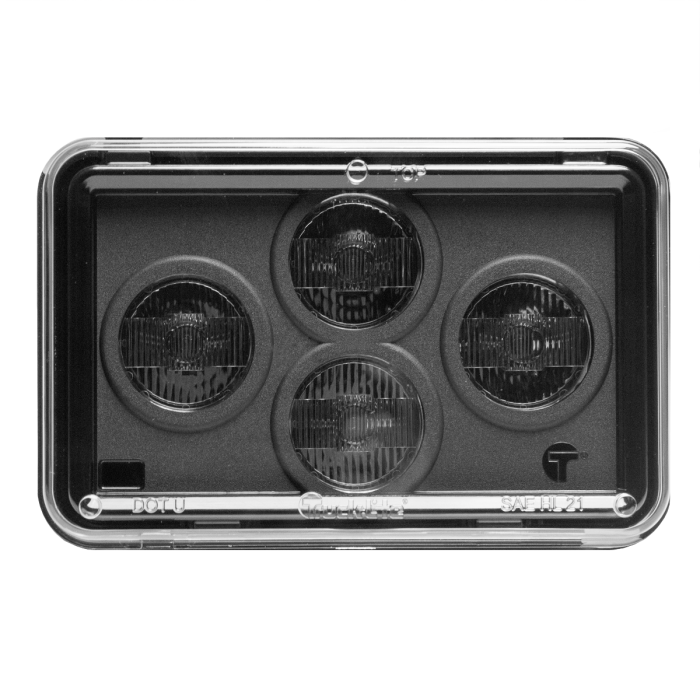

37 Series, LED, 4"x6", Rectangular, 4 Diode, Clear, Polycarbonate Lens, Hardwired, High Beam, Direct LED Headlight
$172.11
EA
The Direct LED Headlights 4x6, featuring a clear polycarbonate lens and robust die-cast aluminum housing, offer a powerful high beam illumination with a low power consumption range of 0.89A-1.72A at 12.8V, ensuring brighter and more efficient lighting for enhanced nighttime visibility.
- 37 Series
- LED
- 4"x6" Rectangular
- 4 Diode
- Clear, Polycarbonate Lens
- Hardwired
- High Beam, Direct LED Headlight
Beam Pattern
High
Common Size
4 x 6
Current Major Amp
0.89A-1.72A @ 12.8V 0.59A-1.23A @ 25.8V
Housing Material
Die-Cast Aluminum
Lamp Connection
Hardwired
Lens Color
Clear
Lens Height
0.7
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
4.2
Lighting Technology
LED
Number of Diodes/Bulbs
4
Number of Wires
2
Plug Side One
Hardwired
Plug Side Two
H4 Connector
Sealed/Bulb Replaceable
Sealed
Series
37 Series
Wire Gauge
16
Compliance Family
FMVSS 108|CMVSS 108|DOT|SAE
Shipping Weight (lbs)
1.250000
Total Height
4.2
Total Width
6.6
