SKU
3863
Manufactures SKU
TRUCK-LITE 3863

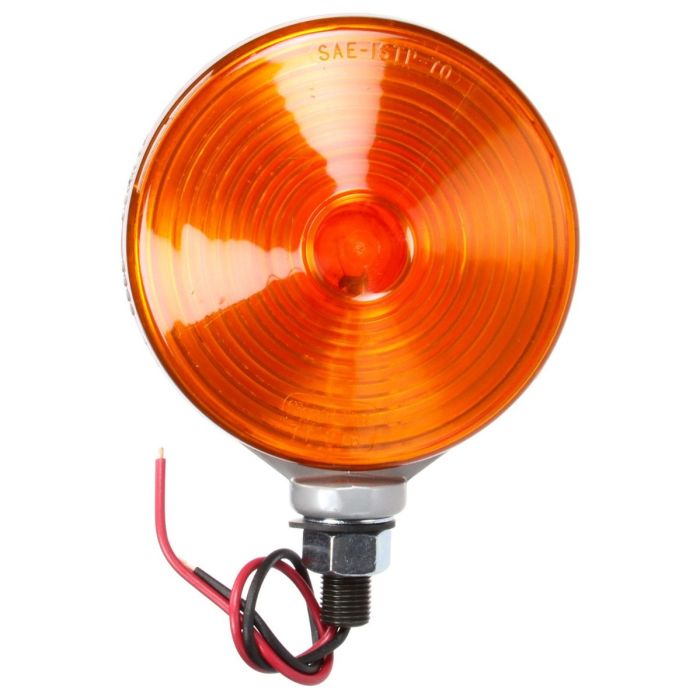

Signal-Stat - Incandescent - Red/Yellow Round - 1 Bulb - Dual Face - 2 Wire - Pedestal Light - 1 Stud - Gray - Stripped End
$50.16
EA
Signal-Stat - Dual Face - Incan. - Red/Yellow Round - 1 Bulb - Gray - 2 Wire - Pedestal Light
Features & Benefits
Snap-Grip lens allows quick bulb and lens replacement - O-ring lens gasket seals out dirt and moisture - Mounting: Hollow stud - 1/2" diameter - Can use 9199 or 9296 mounting brackets
Brand
Signal-Stat
Common Size
4
Current Major Amp
2.1
Current Minor Amp
0.59
Housing Color
Gray
Housing Material
Zinc
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Yellow
Lens Height
4.27
Lens Material
Acrylic
Lens Shape
Round
Lens Width
4.27
Lighting Technology
Incandescent
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.5
Mounting Orientation
Universal
Number of Diodes/Bulbs
1
Number of Faces
Dual Face
Number of Wires
2
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I | S | T
UPC
0724956110247
UNSPSC
25172900
VMRS
034-002-000
Warranty
1-Year
Shipping Weight (lbs)
0.980000
Total Height
4.27
Total Width
4.66
