SKU
40012
Manufactures SKU
TRUCK-LITE 40012

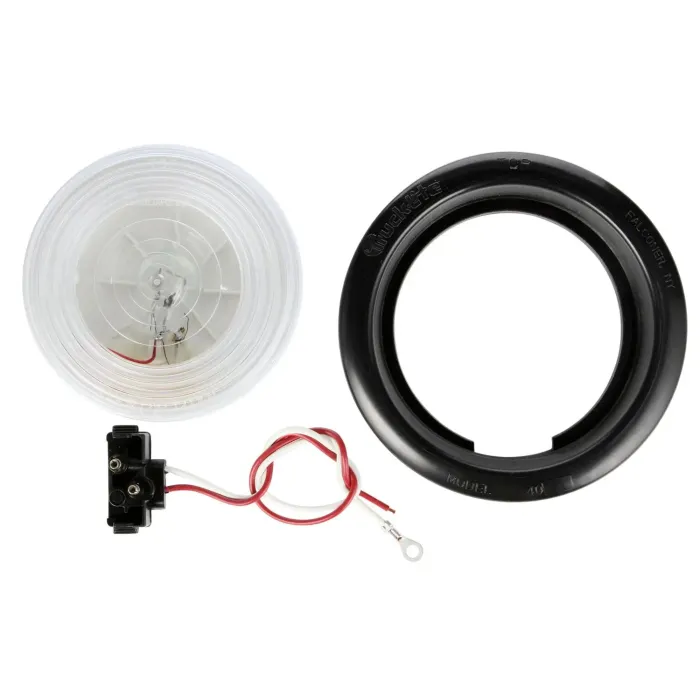

40 Series - Incandescent - Clear Round - 1 Bulb - Back-Up Light - Black Grommet Mount - PL-2 - Stripped End/Ring Terminal - 24V - Kit
$20.95
EA
40 Series - Incan. - 1 Bulb - Round - Back-Up Light - Black Grommet - 24V - Kit
Features & Benefits
Polycarbonate lens and housing are sonically sealed - Bulb is shock mounted for extended life - Legal only for back-up function - Not recommended for dome lamp use - Replaces Signal-Stat 4041W and 4047W - Upgrade to LED Lighting Systems using Truck-Lite's Super 44 Series products
Brand
TRUCK-LITE
Common Size
4
Current Amp
2.1
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
PL-2
Lens Color
Clear
Lens Height
4.31
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4.31
Lighting Technology
Incandescent
Mount Type
Grommet Kit
Mount/Trim Color
Black
Mount/Trim Material
PVC
Mounting Connector Diameter
4.5
Number of Diodes/Bulbs
1
Number of Wires
2
Product Type
Back-Up Light
Sealed/Bulb Replaceable
Sealed
Series
40 Series
Voltage
24
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
R
UPC
0735111012078
UNSPSC
25172900
VMRS
034-003-074
Warranty
2-Year
Shipping Weight (lbs)
0.560000
Total Height
5.5
Total Width
5.5
