SKU
4017
Manufactures SKU
TRUCK-LITE 4017

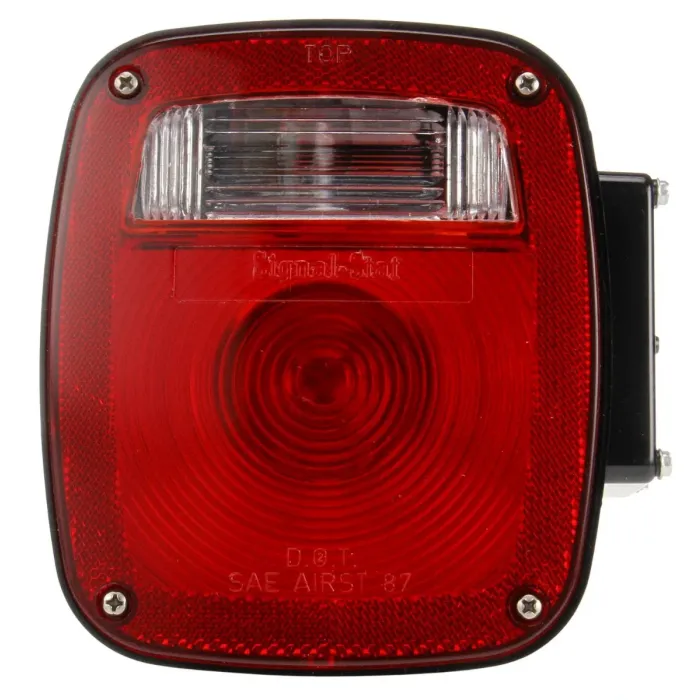

Signal-Stat - Incandescent - Red/Clear Polycarbonate Lens - LH - Combo Box Light - 3 Stud - Screw Terminal - 12V
$52.28
EA
Polycarbonate - LH - Combination Box Light - 3 Stud
Features & Benefits
Replaces all GM medium and heavy duty 1972 to 1985 - Integral housing with 3 bolt mount - Includes junction box cover
Brand
Signal-Stat
Common Size
5 x 6
Current Major Amp
2.1
Current Minor Amp
0.59
Housing Color
Black
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Screw Terminal
Lens Color
Red | Clear
Lens Height
6.75
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
5.75
Lighting Technology
Incandescent
Mount Type
3 Stud Mount
Mounting Connector Diameter
0.25
Number of Diodes/Bulbs
2
Position
Left Hand Side
Product Type
Combination Box Lights
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
S2 | I6 | R | A | L | T
UPC
0724956113279
UNSPSC
25172900
VMRS
034-002-013
Warranty
1-Year
Shipping Weight (lbs)
1.290000
Total Height
6.75
Total Width
5.75
