Multi-Function Versatility: Operates as a stop, tail, turn, backup, and license plate lamp.
-
Direct GM Replacement: Specifically designed to replace GM medium/heavy-duty truck lights (1972–1985).
-
Heavy-Duty Construction: Impact-resistant polycarbonate lens and housing protect against road debris and harsh conditions.
-
Weather-Protected Wiring: Integrated junction box cover shields electrical connections.
-
Stable 3-Stud Mounting: Provides a secure, vibration-resistant mount for industrial and commercial use.
-
Serviceable Design: Easy bulb-replaceable configuration reduces total cost of ownership.
-
Regulatory Compliance: Meets or exceeds FMVSS 108 standards (S2, I6, R, A, T).
SKU
4018
Manufactures SKU
TRUCK-LITE 4018

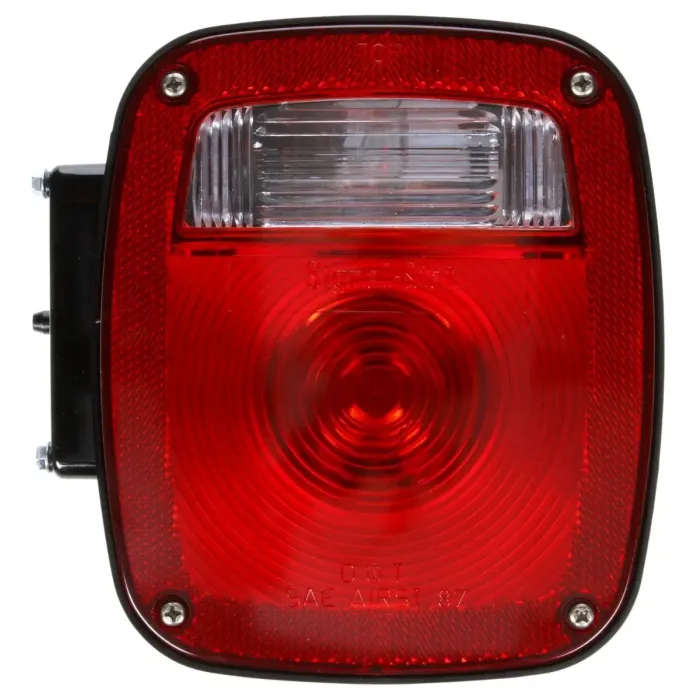

Truck-Lite 4018 – Signal-Stat Right Hand (RH) Combination Box Light, Incandescent, Red/Clear Polycarbonate Lens
$53.42
EA
The Truck-Lite 4018 Signal-Stat Combo Box Light is a high-performance, multi-function lighting assembly engineered for the Right Hand (Passenger Side) of medium and heavy-duty vehicles. This 5" x 6" rectangular lamp serves as a direct OEM-quality replacement for GM medium and heavy-duty trucks manufactured between 1972 and 1985.
Constructed with a rugged red and clear polycarbonate lens, this all-in-one unit integrates stop, tail, turn, backup, and license plate lighting into a single, compact housing. The black polycarbonate integral housing is built for longevity and features a 3-bolt stud mount for a secure, permanent installation on a variety of chassis and vocational bodies.
Designed for serviceability and durability, the 4018 features a junction box cover to shield internal wiring from the elements. The screw terminal connections provide a robust electrical interface that resists loosening under heavy road vibration. As a bulb-replaceable unit, it allows for cost-effective maintenance, making it the ideal choice for keeping classic commercial fleets safely on the road.
Key Details
Brand
Signal-Stat
Common Size
5 x 6
Current Major Amp
2.1
Current Minor Amp
0.59
Housing Color
Black
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Screw Terminal
Lens Color
Red | Clear
Lens Height
6.75
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
5.75
Lighting Technology
Incandescent
Mount Type
3 Stud Mount
Mounting Connector Diameter
0.25
Number of Diodes/Bulbs
2
Position
Right Hand Side
Product Type
Combination Box Lights
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
S2 | I6 | R | A | T
UPC
0724956113286
UNSPSC
25172900
VMRS
034-002-013
Warranty
1-Year
Shipping Weight (lbs)
1.290000
Total Height
6.75
Total Width
5.75
