Designed for 24V Systems: Built specifically for 24V DC electrical setups (designed at 28V), making it perfect for military, agricultural, heavy-duty industrial, and international commercial vehicles.
-
Vibration-Resistant Shock-Mount: Uniquely engineered internal shock-mount system isolates and protects the bulb filament from harsh road shock, dramatically reducing bulb failure.
-
Hermetically Sealed Construction: The high-impact polycarbonate lens and housing are sonically sealed to form a permanent, watertight barrier against dust, moisture, and road spray.
-
Three Safety Functions in One: Integrates your vehicle’s rear tail light, brake light, and turn signal operations into a single, high-performing 4-inch round unit.
-
Standard PL-3 Connection: Features a standard 3-prong female PL-3 pigtail socket on the back for quick, secure electrical connections (compatible with Truck-Lite 94992/94993 or similar 3-wire harnesses).
-
Fully Safety Certified: Meets or exceeds FMVSS 108, CMVSS 108, DOT, and SAE standards (marked S2, I6, P2, T) for legal commercial highway use.

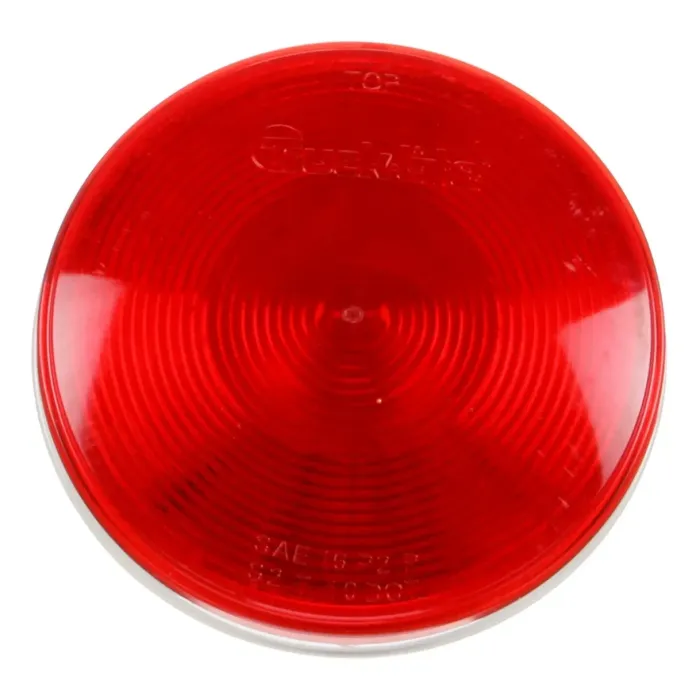

Truck-Lite 40209R 40 Series Incandescent Red 4" Round Stop/Turn/Tail Light (24V, Shock-Mounted Bulb, PL-3 Connection, Sealed Lamp)
Bring standard-setting rear signaling reliability and heavy-duty 24V performance to your heavy machinery, military vehicle, export fleet, or commercial transport rig with the Truck-Lite 40209R 40 Series Stop/Turn/Tail Light. This 4-inch round, red incandescent lamp is a specialized fleet standard built to deliver dual-filament illumination for essential tail, braking, and turn signaling under demanding high-voltage setups.
Engineered to prevent downtime, the Truck-Lite 40209R features an internal shock-absorbent bulb mount. This unique design cushions the heavy-duty bulb filament from extreme road vibrations, bumps, and chassis shocks, significantly extending the service life of the light compared to standard bulb configurations. Sonically sealed inside a high-impact polycarbonate lens and housing assembly, this 24V lamp flush-mounts cleanly into standard 4.5-inch panel cutouts using rubber grommets and connects quickly using industry-standard PL-3 pigtail harnesses.
Grote: 52152
NAPA: LIT 40209R
Interchange Part Numbers: TL40209R, TL-40209R, TRU40209R, LIT40209R, TK40209R
Truck-Lite alternative options: 40009R (24V complete kit version with plug/grommet), 40209Y (24V yellow/amber turn signal version)
