Engineered for 24V Systems: Built specifically for 24V electrical setups (designed at 28V), making it the perfect solution for heavy equipment, agricultural machinery, military chassis, and international transport fleets.
-
Built-In Reflectorized Lens: Features an integrated reflective optical pattern that eliminates the need for separate reflectors while keeping your vehicle fully DOT compliant.
-
Vibration-Dampening Shock-Mount: Internal bulb shock-mounting isolates the filament from severe road vibration, extending operational life and minimizing fleet maintenance downtime.
-
Hermetically Sealed Construction: The tough polycarbonate lens and housing are sonically welded together, locking out moisture, dust, dirt, and chemical road salts.
-
Three Rear Functions in One: Seamlessly consolidates your rear tail light, brake light, and turn indicator operations into a single, high-performing 4-inch round unit.
-
Fully Safety Certified: Meets or exceeds FMVSS 108, CMVSS 108, DOT, and SAE standards (marked S2, I6, P2, T) for legal commercial highway application.

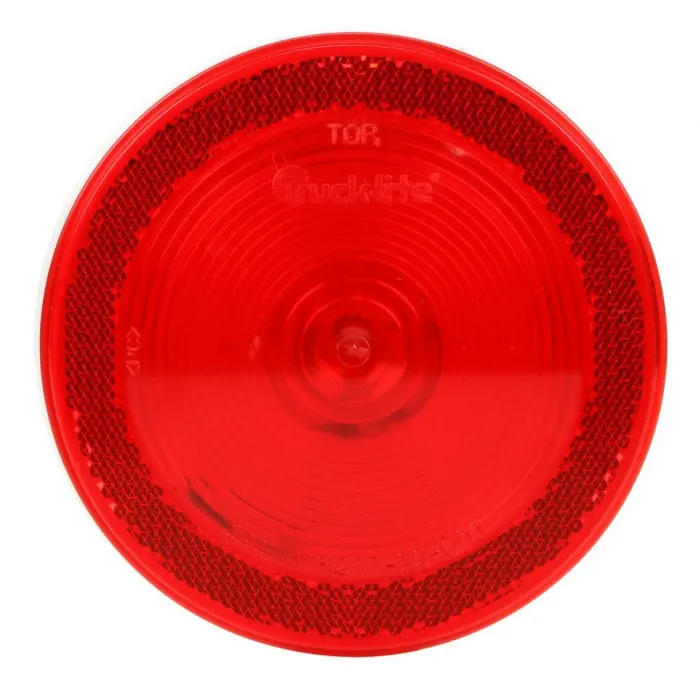

Truck-Lite 40232R 40 Series Incandescent Red 4" Round Stop/Turn/Tail Light (24V, Reflectorized Lens, Shock-Mounted Bulb, PL-3 Connection, Sealed Lamp)
Bring high-voltage reliability and built-in safety compliance to your heavy machinery, military chassis, export fleet, or commercial transport rig with the heavy-duty Truck-Lite 40232R 40 Series Stop/Turn/Tail Light. This 4-inch round, red incandescent lamp is engineered specifically for 24V DC systems. It delivers essential tail, braking, and turn signaling with an integrated reflectorized lens. The built-in reflective border functions as a Class A reflector, allowing you to maintain full legal visibility without adding separate reflector tape or markers to your vehicle.
Built to withstand the toughest road and job site conditions, the Truck-Lite 40232R features a uniquely designed internal shock-mount system. This specialized configuration cushions and isolates the heavy-duty dual-filament bulb from intense chassis vibration and harsh road shocks, drastically reducing filament breaks and extending overall lamp life. Sonically sealed in a high-impact polycarbonate lens and housing assembly, this 24V lamp is completely watertight and accepts industry-standard 3-prong PL-3 pigtail connections.
Grote: 52192
NAPA: LIT 40232R
Interchange Part Numbers: TL40232R, TL-40232R, TRU40232R, LIT40232R
Truck-Lite alternative options: 40209R (Non-reflectorized 24V red lamp), 40215R (12V reflectorized red lamp equivalent)
