Permanently Affixed Black Flange: Molded directly from high-impact black ABS plastic, the integrated flange offers an all-in-one surface-mounting solution that provides a clean finish and heavy-duty theft protection.
-
Vibration-Dampening Shock-Mount: Internal bulb shock-mounting shields the single dual-filament incandescent bulb from severe road vibration, extending runtime and reducing replacement downtime.
-
Hermetically Sealed Design: A robust polycarbonate lens and housing are sonically welded together, locking out moisture, dust, dirt, and corrosive road spray.
-
Three Rear Functions in One: Streamlines vehicle styling by consolidating your rear tail light, brake light, and turn indicator operations into a single round unit.
-
Standard PL-3 Socket: Built with a standard 3-prong female PL-3 pigtail interface on the back for plug-and-play wiring (compatible with Truck-Lite 94993 or similar 3-wire harnesses).
-
Fully Safety Certified: Meets or exceeds FMVSS 108, CMVSS 108, DOT, and SAE standards (marked S2, I6, P2, T) for legal commercial highway application.

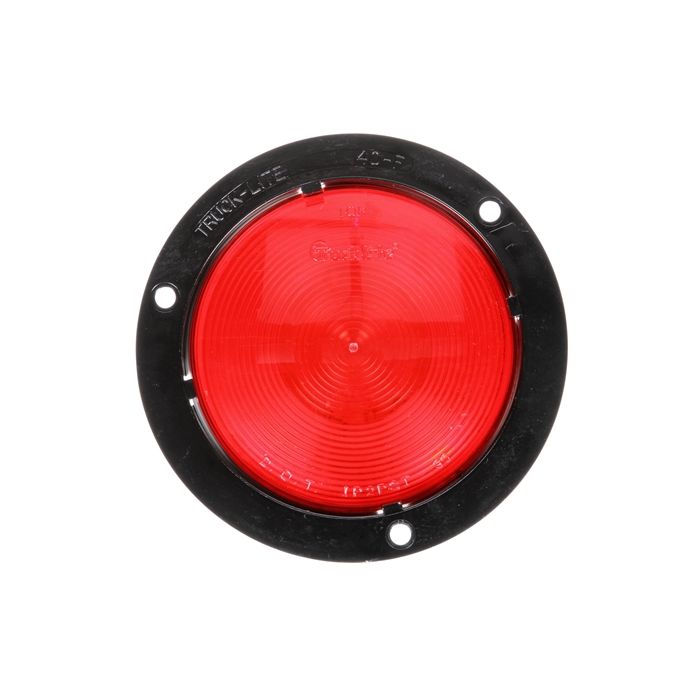

Truck-Lite 40233R 40 Series Incandescent Red 4" Round Stop/Turn/Tail Light (12V, Black ABS Flange Mount, PL-3 Connection, Sealed Lamp)
Secure your commercial vehicle's rear signaling with the sleek, theft-resistant Truck-Lite 40233R 40 Series Stop/Turn/Tail Light. This standard 4-inch round, red incandescent lamp is a heavy-duty fleet favorite designed for vocational trucks, box trucks, and trailers. It delivers crisp, dual-filament illumination to handle your vehicle’s brake, tail, and turn signaling requirements.
Unlike standard push-in lights that rely on an external rubber grommet, the Truck-Lite 40233R features a built-in, permanently molded black ABS plastic flange. This structural design eliminates the need for separate rubber components, allowing you to flush-mount the light directly onto a standard 4.5-inch vehicle panel cutout via a secure surface-screw application. This helps deter theft or accidental blowouts on the highway. Sonically sealed and 100% watertight, this 12V lamp operates on industry-standard 3-prong PL-3 pigtail connections, providing a secure and durable drop-in replacement.
Grote: 52732
Other Interchanges: PT4000RF, TL40233R, TK40233R
Signal-Stat: 4052
Truck-Lite alternative options: 40222R (Gray flange version), 40229R (Red flange version), 40202R (Standard grommet-mount version), 40058R (Super 40 premium kit alternative)
