Uniquely Designed Shock-Mount: Internal bulb shock-mounting cushions the dual-filament incandescent bulb from severe road vibration, extending runtime and reducing replacement downtime.
-
Permanently Affixed Gray Flange: The built-in gray ABS plastic flange is molded directly to the lamp housing, providing an all-in-one surface-mounting solution that guards against theft.
-
Premium Super 40 Engineering: Upgraded commercial-grade design backed by an extended 3-year manufacturer warranty for maximum fleet reliability.
-
Hermetically Sealed Design: A robust polycarbonate lens and housing are sonically welded together, locking out moisture, dust, dirt, and corrosive road spray.
-
Three Rear Functions in One: Streamlines vehicle aesthetics by consolidating tail light, brake light, and turn indicator operations into a single round unit.
-
Standard PL-3 Socket: Features a standard 3-prong female PL-3 pigtail interface on the back for plug-and-play wiring (compatible with Truck-Lite 94993 or similar 3-wire harnesses).
-
Fully Safety Certified: Meets or exceeds FMVSS 108, CMVSS 108, DOT, and SAE standards (marked S2, I6, P2, T) for legal commercial highway application.

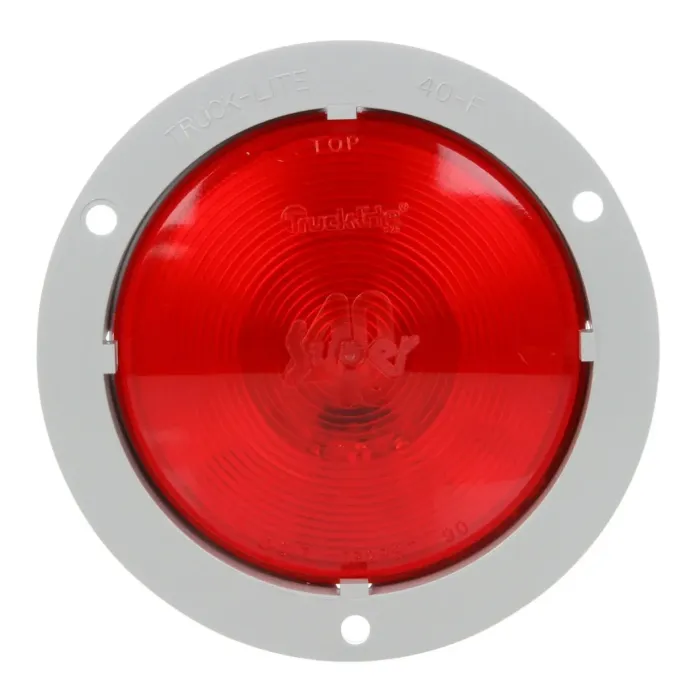

Truck-Lite 40258R Super 40 Incandescent Red 4" Round Stop/Turn/Tail Light (12V, Gray ABS Flange Mount, PL-3 Connection, Sealed Lamp)
Upgrade your commercial vehicle's rear signaling with the premium, theft-resistant Truck-Lite 40258R Super 40 Series Stop/Turn/Tail Light. This 4-inch round, red incandescent lamp is engineered specifically for heavy-duty fleet trucks, vocational vehicles, and trailers. It features Truck-Lite’s legendary uniquely designed shock-mount technology, which isolates the dual-filament bulb from harsh road vibrations and impacts to extend its operational life.
Instead of relying on an external rubber push-in grommet, the Truck-Lite 40258R is built with a permanently integrated, high-impact gray ABS plastic flange. This structural design allows you to flush-mount the light directly onto your vehicle's panel cutout via a secure surface-screw application, keeping the light tight and secure while deterring tampering or accidental blowouts on the highway. Sonically sealed and 100% watertight, this premium 12V lamp utilizes an industry-standard PL-3 connection and is backed by an extended 3-year manufacturer warranty.
Peterson: M424R
Grote: 54183
Interchange Part Numbers: TL40258R, TL-40258R, TRU40258R, LIT40258R
Truck-Lite alternative options: 40058R (Complete kit version with pigtail plug included), 40222R (Standard 40 series gray flange version), 40258Y (Yellow/Amber gray flange version), 40202R (Standard grommet-mount version)
