Complete All-in-One Kit: Comes ready to install with lens, housing, socket assembly, incandescent bulb, black PVC grommet, and ground screws.
-
3-in-1 Signal Functionality: Combines Stop, Turn, and Tail lighting functions in a single round 4" footprint.
-
Flush Grommet Mounting: Included black PVC grommet provides a snug, vibration-dampening flush fit inside any standard 4-1/2" diameter mounting hole.
-
Durable Polycarbonate Lens: High-impact red polycarbonate lens resists cracking, fading, and road debris impact.
-
Secure Hardwired Connection: 3-wire hardwired lead with 16-gauge wiring, stripped lead ends, and an integrated ring terminal for grounding.
-
Full Regulatory Compliance: Meets FMVSS 108, CMVSS 108, DOT, and SAE standards (P2, I6, P specifications) for legal highway operation.
SKU
40302R
Manufactures SKU
TRUCK-LITE 40302R

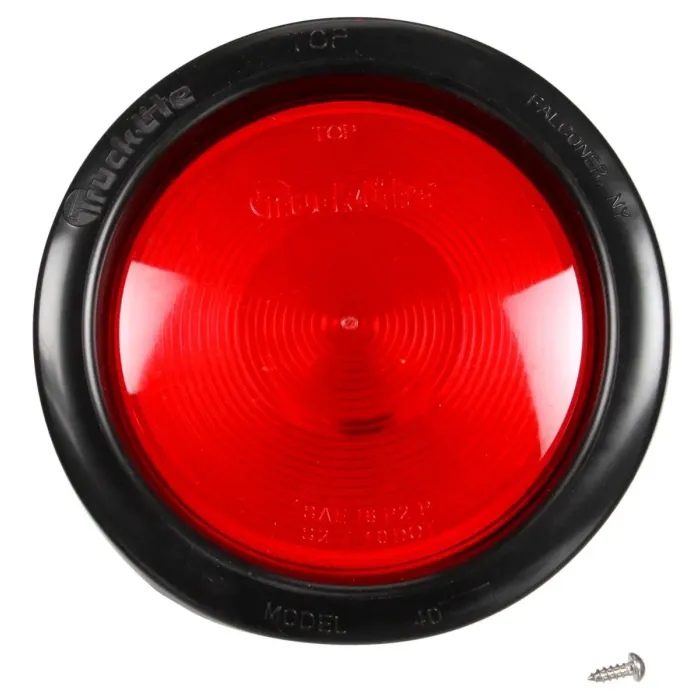

Truck-Lite 40302R – 40 Series 4" Round Incandescent Stop/Turn/Tail Light Kit (Red Polycarbonate Lens, Black PVC Grommet Mount, Hardwired, 12V)
$15.12
EA
Maintain compliance and clear road signaling with the Truck-Lite 40302R 40 Series 4" Round Red Incandescent Stop/Turn/Tail Light Kit. Designed for heavy-duty commercial vehicles, trailers, and utility fleets, this complete replacement kit provides dependable 3-function signaling—Stop, Turn, and Tail—in a classic, field-proven package.
The complete kit includes a high-impact red polycarbonate lens, robust housing, heavy-duty socket assembly with bulb, black PVC grommet, and mounting hardware. Built for flush-mount installation in a standard 4-1/2" cutout hole, the hardwired leads feature stripped ends and a ring terminal for secure grounding.
Key Details
Brand
TRUCK-LITE
Common Size
4
Current Major Amp
2.1
Current Minor Amp
0.48
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
4.38
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4.38
Lighting Technology
Incandescent
Mount Type
Grommet Kit
Mount/Trim Color
Black
Mount/Trim Material
PVC
Mounting Connector Diameter
4.5
Number of Diodes/Bulbs
1
Number of Wires
3
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
40 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2 | I6 | P
UPC
0735111012511
UNSPSC
25172900
VMRS
034-002-013
Warranty
1-Year
Shipping Weight (lbs)
0.500000
Total Height
5.5
Total Width
5.5
