SKU
4053
Manufactures SKU
TRUCK-LITE 4053

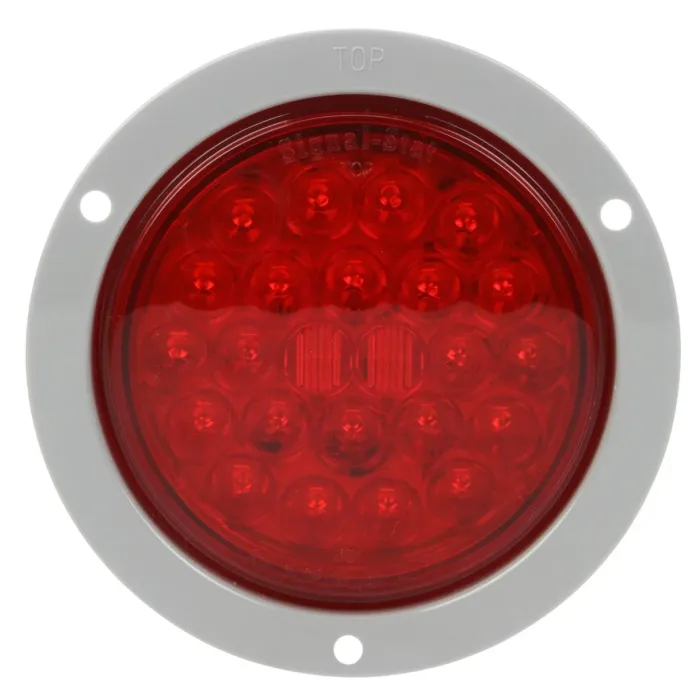

Signal-Stat - LED - Red - Round - 24 Diode - Stop/Turn/Tail - Gray Flange - PL-3 - 12V
$18.25
EA
Signal-Stat - LED - Red - Round - 24 Diode - S/T/T - Gray Flange - PL-3 - 12V
Features & Benefits
Housing and flange are molded together to form one piece - Uses standard right angle PL-3 connection - When properly mounted - exceeds FMVSS DOT requirements for S/T/T and F/P/T - Lamps come with Truck-Lite 2-Year Limited Warranty - Designed with impact-resistant polycarbonate material - LEDs do not have a filament - therefore are not susceptible to shock and vibration damage major cause of failure for lamps with an incandescent bulb - Epoxy-encapsulated electronics prevents damage from moisture and corrosion
Brand
Signal-Stat
Common Size
4
Current Major Amp
0.38
Current Minor Amp
0.03
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-3
Lens Color
Red
Lens Height
4.49
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
4.49
Lighting Technology
LED
Mount Type
Flange Mount
Mount/Trim Color
Gray
Mount/Trim Material
Polycarbonate
Mounting Connector Diameter
4.5
Number of Diodes/Bulbs
24
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
Signal-Stat
Voltage
12
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
P2 | S2 | I6 | T
UPC
0735111172932
UNSPSC
25172900
VMRS
034-002-013
Warranty
2-Year
Shipping Weight (lbs)
0.530000
Total Height
5.46
Total Width
5.46
