SKU
40747
Manufactures SKU
TRUCK-LITE 40747 | Discontinued - Available While Supply Lasts

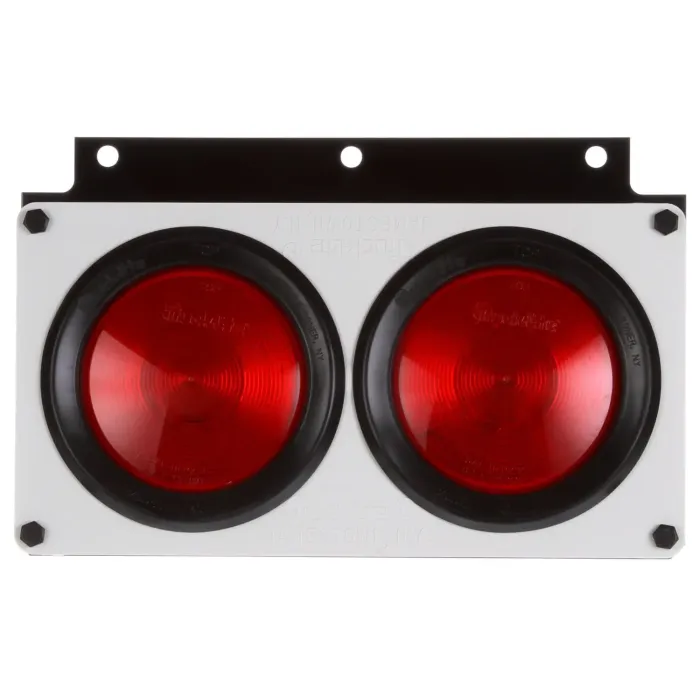

40 Series - Incandescent - S/T/T Light Module - Right Hand Side - Black Steel - 12V
Special Price
$68.44
Regular Price
$76.78
40 Series - Incan. - S/T/T Module - RH - Black Steel - 12V
Features & Benefits
Features metal mounting flange with high impact plastic module box - Optional mounting gasket #97938 available to provide extra seal between module and body
Brand
TRUCK-LITE
Current Major Amp
5.1
Current Minor Amp
3.48
Housing Material
ABS
KIT
No
Lamp Connection
PL-3
Lens Color
Red
Lens Height
3.9
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
3.9
Lighting Technology
Incandescent
Mount Type
4 Screw Bracket Mount
Mount/Trim Color
Black
Mount/Trim Material
Steel
Mounting Connector Diameter
0.37
Number of Lamps
2
Number of Wires
5
Position
Right Hand Side
Product Type
Light Module
Sealed/Bulb Replaceable
Sealed
Series
40 Series
Voltage
12
Wire Gauge
14
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
S2 | I6 | R | T
UPC
0735111012917
UNSPSC
25172900
VMRS
034-006-008
Warranty
1-Year
Shipping Weight (lbs)
4.280000
Total Height
7.75
Total Width
12.25
