SKU
40790
Manufactures SKU
TRUCK-LITE 40790

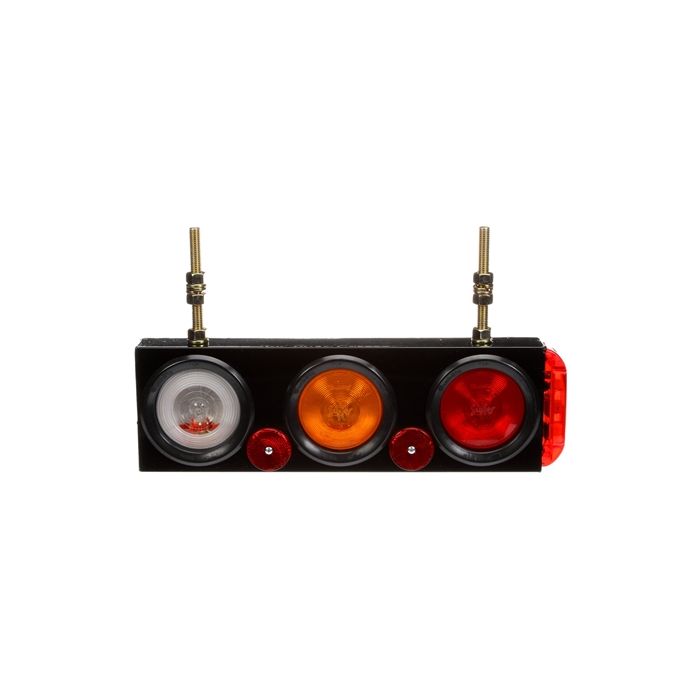

40 Series - Incandescent - Back-Up & S/T/T Light Module w/ Side Marker - Right Hand Side - Black PVC - Turn Signal - 12V
$172.56
EA
40 Series - Incan. - Back-Up & S/T/T Module w/ Side Marker - RH - Black PVC - Turn Signal - 12V
Features & Benefits
Popular on straight truck applications - Features metal module box with side marker and back-up lamps - Upgrade to LED Lighting System - use part# 40808 and 40809
Brand
TRUCK-LITE
Current Major Amp
2.1
Current Minor Amp
0.48
Housing Material
Steel
KIT
No
Lamp Connection
PL-2
Lens Color
Clear | Red | Yellow
Lens Height
3.9
Lens Material
Polycarbonate
Lens Shape
Round
Lens Width
3.9
Lighting Technology
Incandescent
Mount Type
2 Stud Mount
Mount/Trim Color
Black
Mount/Trim Material
PVC
Mounting Connector Diameter
0.625
Number of Lamps
4
Number of Wires
5
Position
Right Hand Side
Product Type
Light Module
Sealed/Bulb Replaceable
Sealed
Series
40 Series
Voltage
12
Wire Gauge
14
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
A | I6 | P2 | R | S2 | T
UPC
0735111013082
UNSPSC
25172900
VMRS
034-002-000
Warranty
1-Year
Shipping Weight (lbs)
11.000000
Total Height
6.38
Total Width
21.2
