SKU
41007R
Manufactures SKU
TRUCK-LITE 41007R

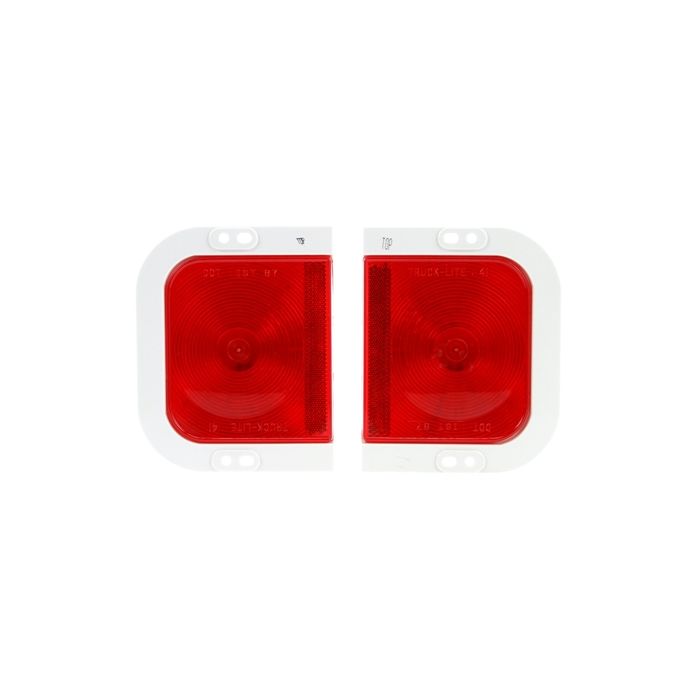

41 Series - Universal Kit - Incandescent - Red - Rectangular - 1 Bulb - Stop/Turn/Tail - White Flange Mount - PL-3 - Stripped End/Ring Terminal - 12V - Kit
$33.08
EA
41 Series - Universal Kit - Incan. - Red - Rectangular - 1 Bulb - S/T/T - White Flange - PL-3 - Stripped/Ring - 12V - Kit
Features & Benefits
Mounts in 783" x 443" hole - Requires separate reflector to meet legal requirements
Brand
TRUCK-LITE
Common Size
3 x 4
Current Major Amp
2.1
Current Minor Amp
0.48
KIT
Yes
Lamp Connection
PL-3
Lens Color
Red
Lens Height
4.13
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
3.71
Lighting Technology
Incandescent
Mount Type
Flange Mount
Mount/Trim Color
White
Mount/Trim Material
Polycarbonate
Number of Diodes/Bulbs
1
Number of Wires
3
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
41 Series
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I | S | T
UPC
0735111013327
UNSPSC
25172900
VMRS
034-002-013
Warranty
1-Year
Shipping Weight (lbs)
1.030000
Total Height
5.4
Total Width
8.8
