SKU
45022R
Manufactures SKU
TRUCK-LITE 45022R

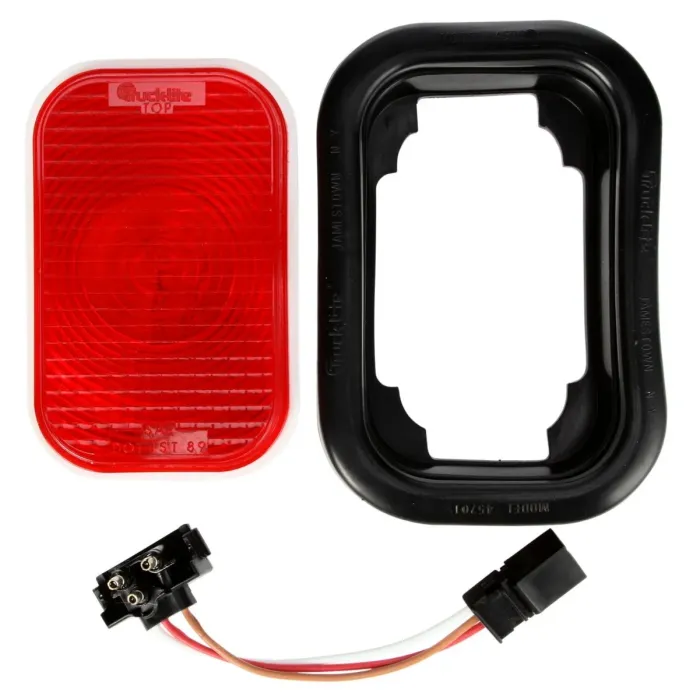

45 Series - Incandescent - Red Reflectorized - 1 Bulb - LLV Stop/Turn/Tail - Black Grommet Mount - PL-3 - Packard Connector - 12V - Kit
$20.23
EA
45 Series - Incan. - Red Reflectorized - 1 Bulb - LLV S/T/T - Black Grommet - 12V - Kit
Features & Benefits
Direct replacement for approved lamps on United States Postal Service LLV (Long Life Vehicle) - Designed for mounting on a 7 - 11 degree rollback from the vertical plane - Three versions: each features turn and hazard functions - stop and tail functions or back-up functions
Brand
TRUCK-LITE
Common Size
3 x 5
Current Major Amp
2.1
Current Minor Amp
0.58
Housing Material
Polycarbonate
KIT
Yes
Lamp Connection
PL-3
Lens Color
Red
Lens Height
5.31
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
3.4
Lighting Technology
Incandescent
Mount Type
Grommet Kit
Mount/Trim Color
Black
Mount/Trim Material
PVC
Mounting Connector Diameter
3.58 x 5.45
Number of Diodes/Bulbs
1
Number of Wires
3
Product Type
LLV Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
45 Series
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108
Standards Met
P2 | I6 | S2 | T
UPC
0735111041740
UNSPSC
25172900
VMRS
034-002-000
Warranty
1-Year
Shipping Weight (lbs)
0.300000
Total Height
5.31
Total Width
3.4
