Heavy-Duty Extended-Life Bulb: Equipped with a heavy-duty incandescent bulb engineered to withstand continuous commercial chassis vibration and mechanical road shock.
-
Flexible Mounting Orientation: Mounts horizontally or vertically in standard 3" x 5" cutouts to accommodate diverse vehicle body configurations.
-
PL-3 Plug Interface: Industry-standard PL-3 socket design allows quick, hassle-free connection using standard right-angle or straight pigtails.
-
Grommet Mount Compatibility: Fits securely into standard 3" x 5" black PVC rubber grommets for a clean, shock-absorbing flush installation.
-
Sealed Polycarbonate Construction: High-impact polycarbonate lens and housing are permanently sealed together to prevent water, dust, and weather damage.
-
Standard Compliant: Meets SAE I, P2, S, and T standards as well as DOT FMVSS 108 and CMVSS 108 commercial vehicle lighting regulations.
SKU
45201R
Manufactures SKU
TRUCK-LITE 45201R

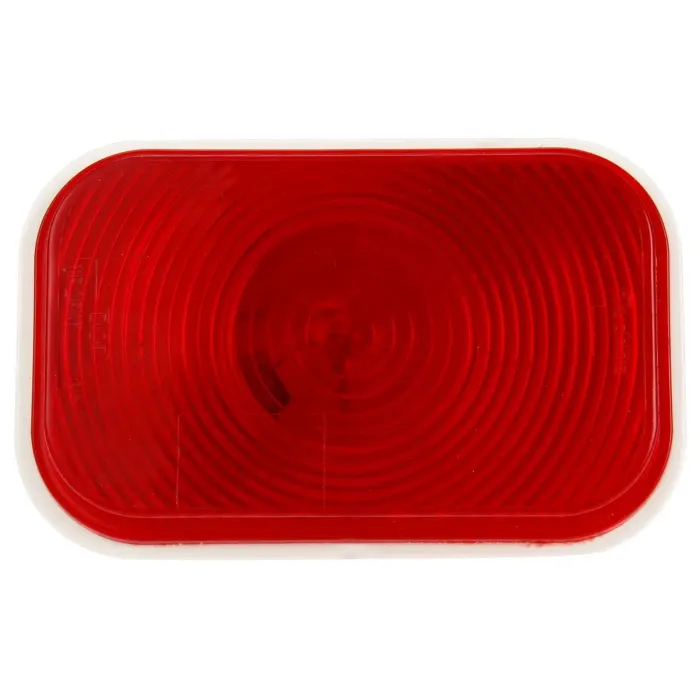

Truck-Lite 45201R – Super 45 Series Rectangular Red Incandescent Rear Turn Signal Light (Grommet Mount, PL-3 Connection, 12V)
$16.22
EA
Ensure reliable turn signaling performance across your commercial fleet with the Truck-Lite 45201R Super 45 Series Red Rectangular Incandescent Rear Turn Signal Light. Engineered for heavy-duty commercial trucks, trailers, and vocational bodies, this 3" x 5" class sealed lamp delivers high-visibility red illumination for clear, dependable rear turn signaling.
Designed to mount either horizontally or vertically in standard rectangular grommets, the 45201R features a heavy-duty single-filament bulb built for long service life under tough road conditions. Its sonic-welded polycarbonate lens and housing assembly create a tight environmental seal, protecting internal electrical components from moisture, road dirt, and corrosive salts.
Features & Benefits
Brand
TRUCK-LITE
Common Size
3 x 5
Current Major Amp
2.1
Current Minor Amp
0.32
Housing Material
Polycarbonate
KIT
No
Lamp Connection
PL-3
Lens Color
Red
Lens Height
4.86
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
2.98
Lighting Technology
Incandescent
Mount Type
Grommet Mount
Number of Diodes/Bulbs
1
Position
Rear
Product Type
Turn Signal
Sealed/Bulb Replaceable
Sealed
Series
Super 45
Voltage
12
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I | P2 | S | T
UPC
0735111013662
UNSPSC
25172900
VMRS
034-003-010
Warranty
2-Year
Shipping Weight (lbs)
0.360000
Total Height
3.43
Total Width
5.31
