SKU
45259R
Manufactures SKU
TRUCK-LITE 45259R

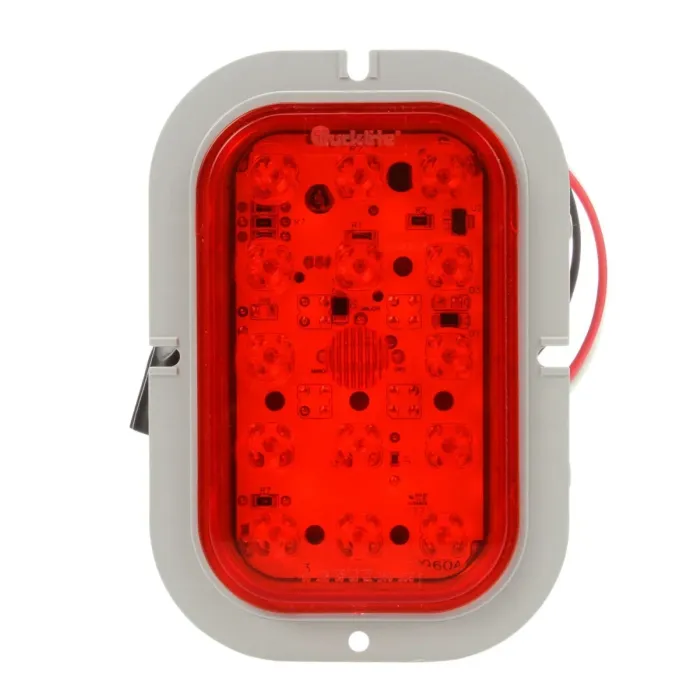

45 Series - LED - Red - Rectangular - 15 Diode - Stop/Turn/Tail - Gray Flange Mount - Hardwired - Straight PL-3 Female - 12-24V - Kit
$141.44
EA
45 Series - LED - Red - Rectangular - 15 Diode - S/T/T - Gray Flange - Hardwired - Straight PL-3 Female - 12-24V - Kit
Features & Benefits
Mount horizontally or vertically - Specifically Designed for use in trailer and body applications
Brand
TRUCK-LITE
Common Size
3 x 5
Current Major Amp
0.25
Current Minor Amp
0.01
KIT
Yes
Lamp Connection
Hardwired
Lens Color
Red
Lens Height
5.31
Lens Material
Acrylic
Lens Shape
Rectangular
Lens Width
3.4
Lighting Technology
LED
Mount Type
Flange Mount
Mount/Trim Color
Gray
Mount/Trim Material
Acrylic
Number of Diodes/Bulbs
15
Number of Wires
3
Product Type
Stop/Turn/Tail
Sealed/Bulb Replaceable
Sealed
Series
45 Series
Voltage
12 | 24
Wire Gauge
18
Compliance Family
FMVSS 108 | CMVSS 108 | DOT | SAE
Standards Met
I6 | P2 | S2 | T
UPC
0735111137337
UNSPSC
25172900
VMRS
034-002-041
Warranty
Lifetime
Shipping Weight (lbs)
0.200000
Total Height
6.13
Total Width
4.22
