SKU
45423
Manufactures SKU
TRUCK-LITE 45423

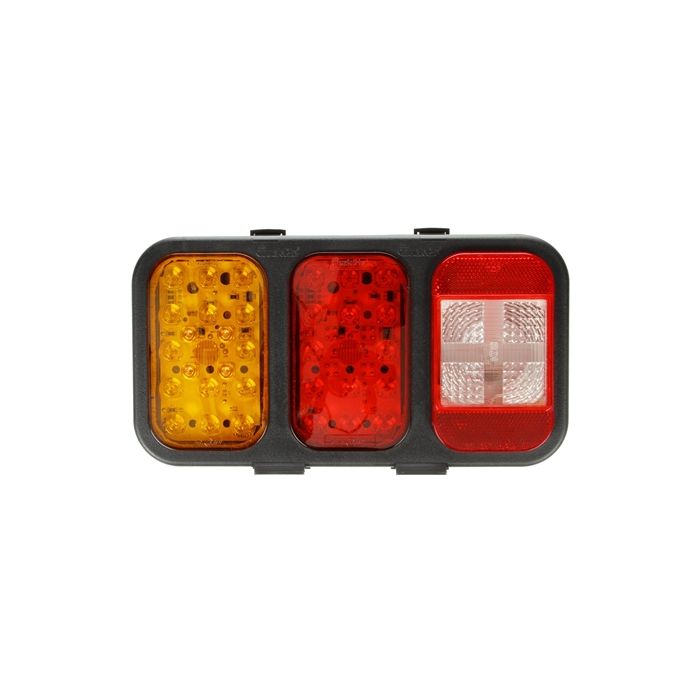

45 Series - Incandescent/LED - Back-Up & S/T Light Module - Left Hand Side - Black Polypropylene - Turn Signal - 24V
$269.04
EA
45 Series - Incan./ LED - Back-Up & S/T Module - LH - Black Polypropylene - Turn Signal - 24V
Features & Benefits
Features weather-resistant synthetic rubber and polypropylene construction - Three-lamp module includes one each multi-volt LED S/T lamp - LED turn signal lamp and sealed reverse lamp - Mounts on four studs - each set on 78mm centers - 131mm apart - Module includes a 125m harness
Brand
TRUCK-LITE
Current Major Amp
0.27
Current Minor Amp
0.03
Housing Material
Rubber
KIT
No
Lamp Connection
Hardwired | PL-2
Lens Color
Red | Clear | Yellow
Lens Height
5.1
Lens Material
Polycarbonate
Lens Shape
Rectangular
Lens Width
3.22
Lighting Technology
LED | Incandescent
Mount Type
4 Stud Mount
Mount/Trim Color
Black
Mount/Trim Material
Polypropylene
Mounting Connector Diameter
0.236
Number of Lamps
3
Number of Wires
5
Position
Left Hand Side
Product Type
Light Module
Sealed/Bulb Replaceable
Sealed
Series
45 Series
Voltage
24
Wire Gauge
18
Compliance Family
ECE
Standards Met
R3 | R6 | R7 | R23
UPC
0735111103363
UNSPSC
25172900
VMRS
034-002-000
Warranty
1-Year
Shipping Weight (lbs)
2.970000
Total Height
6.02
Total Width
10.75
