SKU
4742
Manufactures SKU
TRUCK-LITE 4742

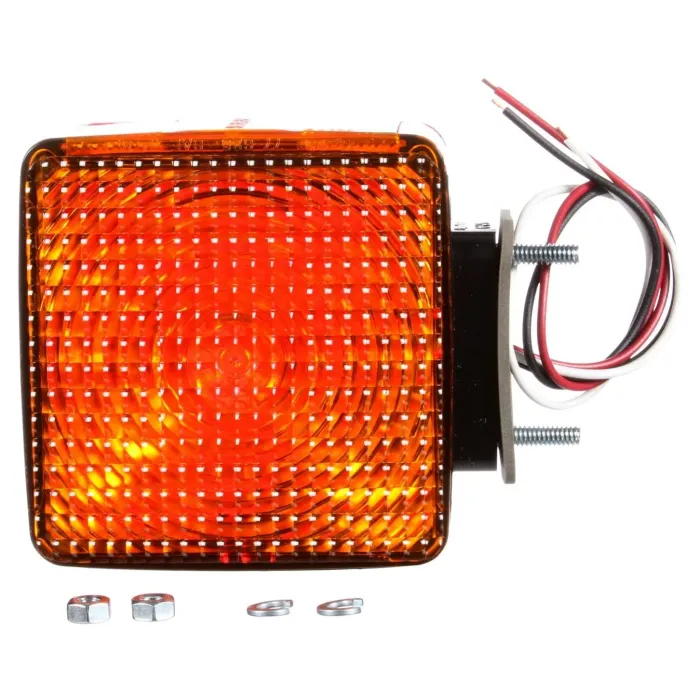

Signal-Stat - Incandescent - Red/Yellow Square - 1 Bulb - Dual Face - Vertical Mount - Side Marker - 2 Wire - Pedestal Light - 2 Stud - Stripped End
$44.07
EA
Signal-Stat - Dual Face - Vertical Mount - Incan. - Red/Yellow Square - 1 Bulb - 2 Wire - Pedestal Light
Features & Benefits
Functions as turn signal - parking and side marker lamp - with reflector - ABS housing will not rust or corrode - Shock/Mount bulb socket - Includes separate ground wire for installation - Fits right and left side applications
Brand
Signal-Stat
Common Size
4 x 4
Current Major Amp
2.1
Current Minor Amp
0.5
Housing Color
Black
Housing Material
ABS
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Yellow
Lens Height
4.75
Lens Material
Acrylic
Lens Shape
Square
Lens Width
4.75
Lighting Technology
Incandescent
Mount Type
2 Stud Mount
Mounting Connector Diameter
0.25
Mounting Orientation
Vertical
Number of Diodes/Bulbs
1
Number of Faces
Dual Face
Number of Wires
2
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
A | I | S | T | P2
UPC
0724956141906
UNSPSC
25172900
VMRS
034-003-071
Warranty
1-Year
Shipping Weight (lbs)
0.920000
Total Height
5.06
Total Width
4.75
