SKU
4800
Manufactures SKU
TRUCK-LITE 4800

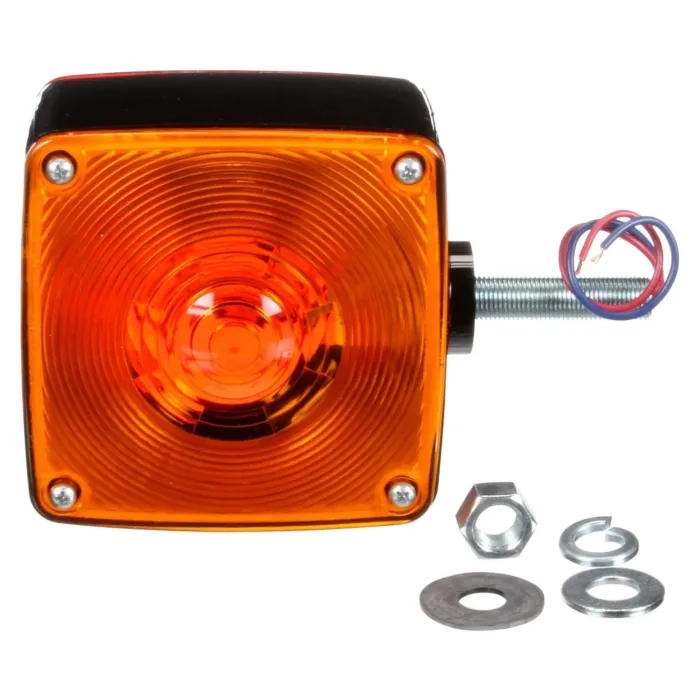

Signal-Stat - Incandescent - Red/Yellow Square - 2 Bulb - Dual Face - Vertical Mount - Side Marker - 3 Wire - Pedestal Light - 1 Stud - Stripped End
$82.23
EA
Signal-Stat - Dual Face - Vertical Mount - Incan. - Red/Yellow Square - 2 Bulb - 3 Wire - Pedestal Light
Features & Benefits
Black housed version is a popular Western Star replacement - Chrome housed version is a popular replacement for Volvo and Peterbilt - Combination park - turn - side marker and reflex reflector - Standard on many OEM applications - High-impact non-corrosive polycarbonate housing - Side marker and reflector included in design
Brand
Signal-Stat
Common Size
4 x 4
Current Major Amp
2.1
Current Minor Amp
0.5
Housing Color
Black
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Yellow
Lens Height
4.62
Lens Material
Acrylic
Lens Shape
Square
Lens Width
4.62
Lighting Technology
Incandescent
Mount Type
1 Stud Mount
Mounting Connector Diameter
0.5
Mounting Orientation
Vertical
Number of Diodes/Bulbs
2
Number of Faces
Dual Face
Number of Wires
2
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I6 | A
UPC
0724956142880
UNSPSC
25172900
VMRS
034-003-071
Warranty
1-Year
Shipping Weight (lbs)
1.200000
Total Height
4.7
Total Width
4.62
