SKU
4805
Manufactures SKU
TRUCK-LITE 4805

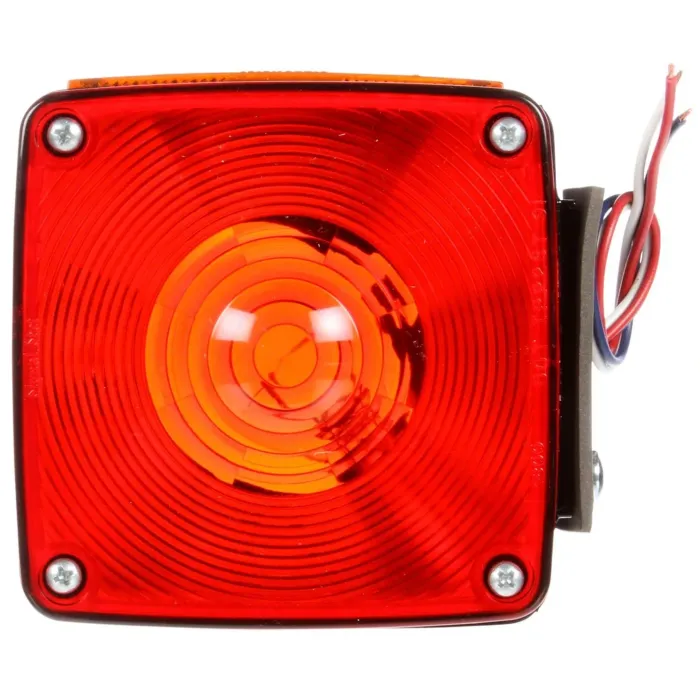

Signal-Stat - Incandescent - Red/Yellow Square - 2 Bulb - Dual Face - Vertical Mount - Side Marker - 5 Wire - Pedestal Light - 2 Stud - Stripped End
$78.74
EA
Signal-Stat - Dual Face - Vertical Mount - Incan. - Red/Yellow Square - 2 Bulb - 5 Wire - Pedestal Light
Features & Benefits
Ground wire added for use on fiberglass fenders - High-impact non-corrosive polycarbonate housing - Mounting pad and two 1/4"-20 bolts included - Side marker and reflector included in design
Brand
Signal-Stat
Common Size
4 x 4
Current Major Amp
2.1
Current Minor Amp
0.5
Housing Color
Black
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Yellow
Lens Height
4.63
Lens Material
Acrylic
Lens Shape
Square
Lens Width
4.63
Lighting Technology
Incandescent
Mount Type
2 Stud Mount
Mounting Connector Diameter
0.25
Mounting Orientation
Vertical
Number of Diodes/Bulbs
2
Number of Faces
Dual Face
Number of Wires
2
Position
Universal
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
16
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
A
UPC
0724956143566
UNSPSC
25172900
VMRS
034-003-071
Warranty
1-Year
Shipping Weight (lbs)
0.510000
Total Height
4.63
Total Width
4.63
