SKU
4805AY116
Manufactures SKU
TRUCK-LITE 4805AY116

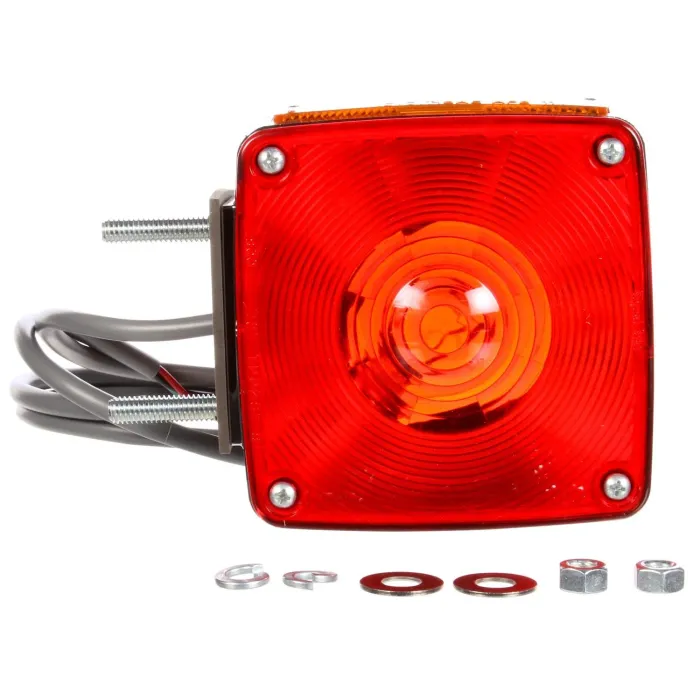

Signal-Stat - Incandescent - Red/Yellow Square - 2 Bulb - LH - Dual Face - Vertical Mount - Side Marker - 3 Wire - Pedestal Light - 2 Stud - Packard 12052457
$95.42
EA
Signal-Stat - Dual Face - LH - Vertical Mount - Incan. - Red/Yellow Square - 2 Bulb - 3 Wire - Pedestal Light
Features & Benefits
Freightliner #A06-18900-000 (LH) - #A06-18900-001 (RH) - Includes OEM 49" harness that mates with truck harness - simplifying replacement - Polycarbonate lens and housing - Side marker and reflector included in design - Mounting pad included - Two 5/16" studs on 2" centers
Brand
Signal-Stat
Common Size
4 x 4
Current Major Amp
2.1
Current Minor Amp
0.5
Housing Color
Chrome
Housing Material
Polycarbonate
KIT
No
Lamp Connection
Hardwired
Lens Color
Red | Yellow
Lens Height
4.7
Lens Material
Polycarbonate
Lens Shape
Square
Lens Width
4.7
Lighting Technology
Incandescent
Mount Type
2 Stud Mount
Mounting Connector Diameter
0.313
Mounting Orientation
Vertical
Number of Diodes/Bulbs
2
Number of Faces
Dual Face
Number of Wires
3
Position
Left Hand Side
Product Type
Pedestal Light
Sealed/Bulb Replaceable
Bulb Replaceable
Series
Signal-Stat
Voltage
12
Wire Gauge
18
Compliance Family
FMVSS 108 | DOT | SAE
Standards Met
I6 | A
UPC
0614046204324
UNSPSC
25172900
VMRS
034-003-010
Warranty
1-Year
Shipping Weight (lbs)
0.700000
Total Height
4.8
Total Width
4.7
