Dual-Function System: Simultaneously routes power to both standard Stop/Turn/Tail (S/T/T) circuits and rear back-up/reverse lighting arrays.
-
Premium 14-Gauge Wiring: Built with heavy-duty 14 AWG copper wiring to maintain optimal electrical flow and structural strength.
-
Integrated S/T/T Breakout: Built-in breakout plug allows fleet mechanics to easily chain secondary safety or marker lighting.
-
Space-Saving PL-3 Plug: Right-angle PL-3 connection prevents strain on contacts and locks out moisture in cramped spaces.
-
Blunt-Cut Adaptability: The blunt-cut trailing end allows custom tailoring for clean splicing or direct junction box termination.
-
All-Weather Resilience: Robust 5-conductor round cable casing completely seals inner copper against road salt, chemicals, and moisture.

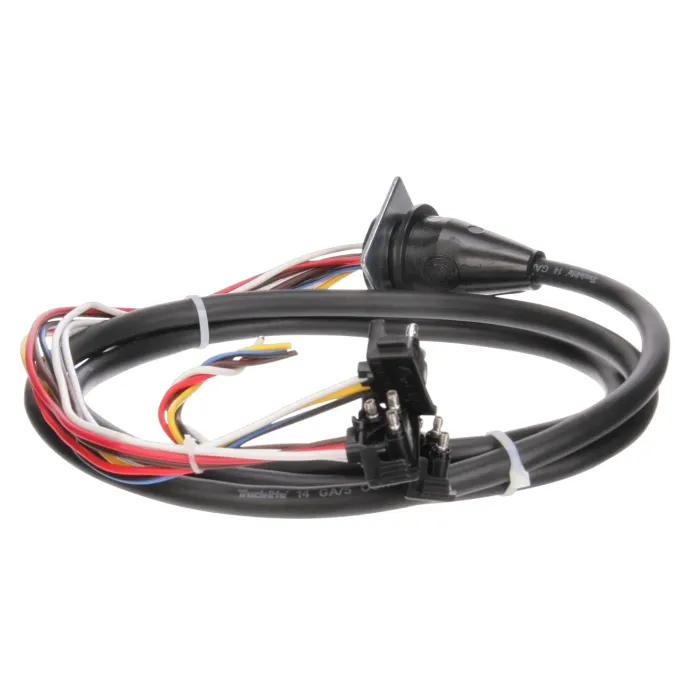

Truck-Lite 50205 – 50 Series 72 in. LH Side Stop/Turn/Tail & Back-Up Harness (3 Plug, 14 Gauge, Right Angle PL-3, Blunt Cut)
Maintain peak electrical integrity on your rear lighting circuits with the heavy-duty Truck-Lite 50205 50 Series Wiring Harness. Engineered for the left-hand (LH/driver) side of commercial vehicles, this premium 72-inch (6 ft.) cable assembly concurrently operates integrated Stop/Turn/Tail (S/T/T) and Back-Up/Reverse light systems. Constructed with 3 robust plugs, an integrated S/T/T breakout point, a low-profile Right Angle PL-3 connector, and a blunt-cut end, this heavy-duty 14-gauge round cable provides unmatched protection against environmental hazards.
Engineered to Survive Severe Environments The Truck-Lite 50205 features a durable, flexible PVC jacket housing five color-coded conductors (Black, Brown, Red, Yellow, and White) for straightforward routing, tracing, and rapid fleet diagnostics. One end features a heavy-duty right-angle PL-3 plug, delivering a tight, low-profile connection that excels in high-vibration, tight-clearance environments. The opposite termination is left blunt-cut, offering ultimate installation flexibility—allowing you to easily trim custom lengths and route directly into a standard junction box or splice into a legacy wiring structure. An integrated S/T/T breakout point makes expanding your setup with auxiliary marker or safety lights quick and secure.
Equip your fleet with trusted, OEM-level electrical components. Trust Truck-Lite’s heritage of commercial vehicle visibility to keep your vehicle fully DOT/FMVSS 108 compliant.
