Extended Reach Engineering: Spans 192 inches (16 feet) to effortlessly route power along extended heavy-duty commercial truck, tank, and trailer frames.
-
Multi-Circuit Infrastructure: Simultaneously routes power to standard Stop/Turn/Tail (S/T/T) circuits and rear/side Marker and Clearance lighting arrays.
-
Dual Lighting Breakouts: Integrated S/T/T and M/C breakout plugs allow fleet mechanics to easily chain secondary safety, identification, or marker lighting.
-
Premium 14-Gauge Wiring: Built with heavy-duty 14 AWG copper wiring to maintain optimal electrical flow and structural strength.
-
Optimized Plug Terminations: Right-angle PL-3/PL-10 connection prevents strain on contacts in tight spaces, paired with a reliable grounding ring terminal.
-
All-Weather Resilience: Robust multi-conductor round cable casing completely seals inner copper against road salt, moisture, and debris.

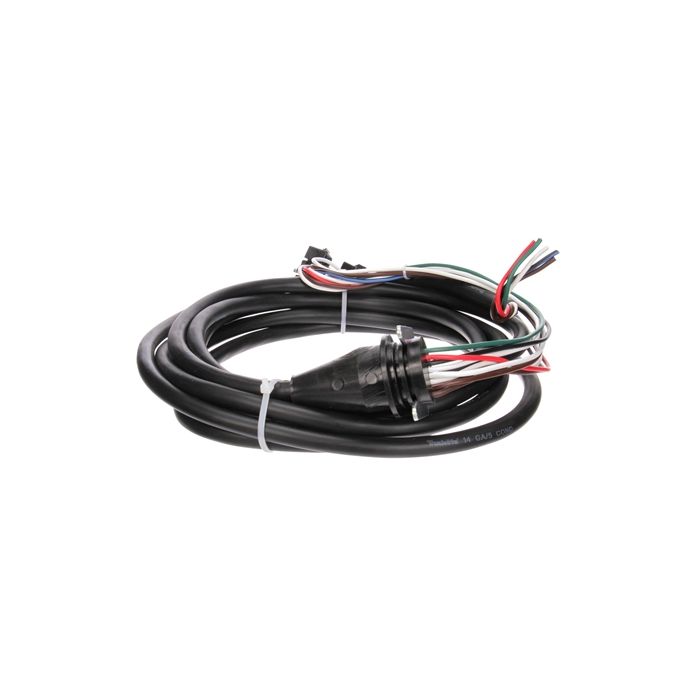

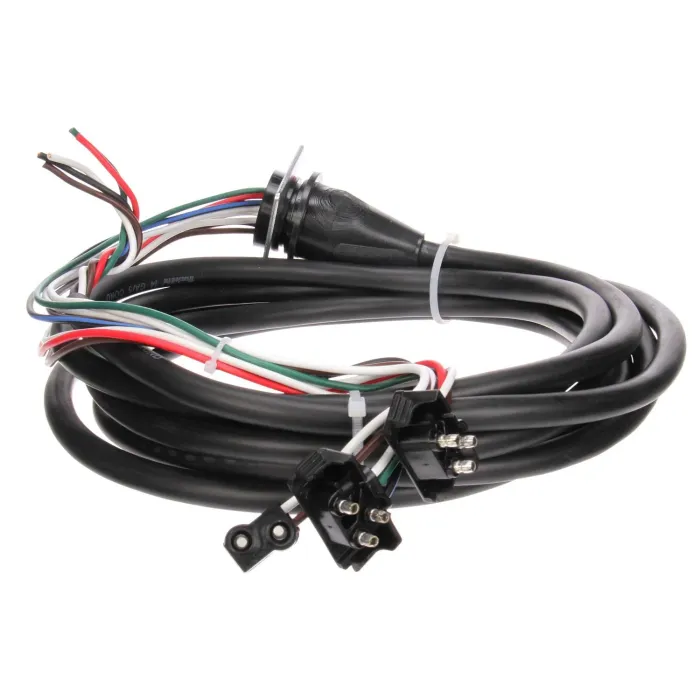

Truck-Lite 50210 – 50 Series 192 in. RH Side Marker, Clearance & Stop/Turn/Tail Harness (3 Plug, 14 Gauge, Right Angle PL-3, PL-10, Ring Terminal)
Streamline your extended commercial vehicle's rear and side signaling with the heavy-duty Truck-Lite 50210 50 Series Wiring Harness. Engineered specifically for the right-hand (RH/passenger) side of long-chassis trucks, tanks, and trailers, this premium 192-inch (16 ft.) cable assembly concurrently operates integrated Marker/Clearance and Stop/Turn/Tail (S/T/T) lighting systems. Constructed with 3 robust plugs, dual S/T/T and M/C breakout points, a low-profile Right Angle PL-3/PL-10 connector configuration, and a secure grounding ring terminal, this heavy-duty 14-gauge round cable delivers maximum protection against harsh road environments.
The Truck-Lite 50210 features a durable, flexible PVC jacket housing five color-coded conductors (Black, Brown, Green, Red, and White) for straightforward routing, tracing, and rapid fleet diagnostics. It utilizes a heavy-duty right-angle PL-3 and PL-10 plug configuration, delivering a tight, low-profile connection that excels in high-vibration spots and tight-clearance frames, alongside a durable ring terminal for a permanent, secure ground. With built-in breakout points for both Stop/Turn/Tail (S/T/T) and Marker/Clearance (M/C) lights, expanding your rig with auxiliary markers or secondary safety light arrays is fast, clean, and entirely plug-and-play without cutting into the core line. Ideal for retrofitting older rigs or outfitting new fleet builds with sealed-in, weather-resistant protection.
Equip your fleet with trusted, OEM-level electrical components. Trust Truck-Lite’s heritage of commercial vehicle visibility to keep your vehicle fully DOT, SAE, and NFPA compliant.
